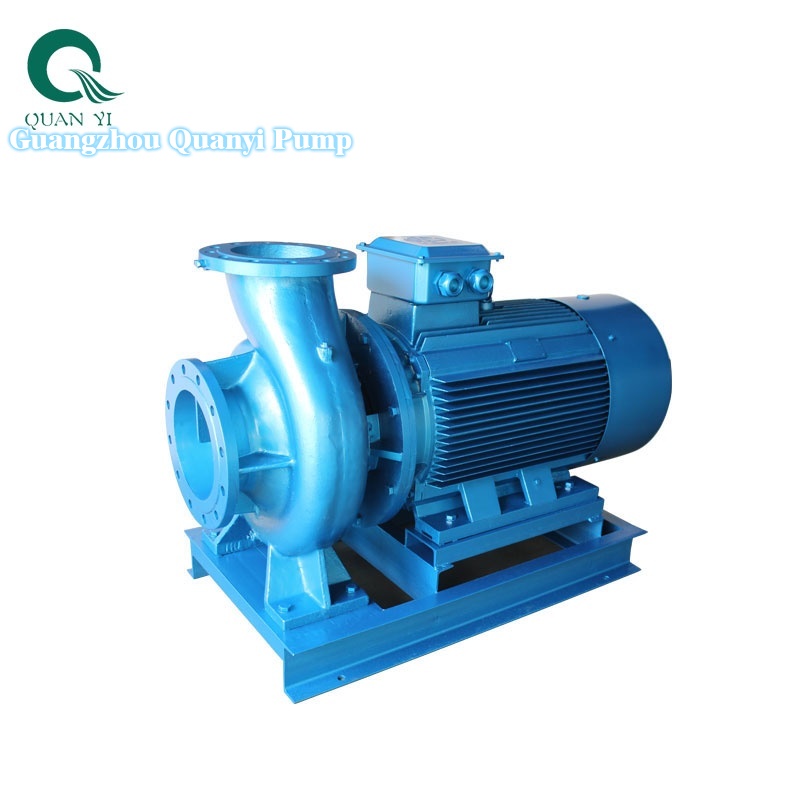

What is the structure of B-type single-stage single-suction cantilever centrifugal pump?

发布时间:2024-01-09 14:05:00 点击:43
 A: The structure of B-type single-stage single-suction cantilever centrifugal pump is composed of pump body, pump cover, impeller, pump shaft, bracket, shaft sleeve, seal ring, packing ring, packing gland, bearing, pump coupling, motor coupling, support foot, etc.



 In addition to the pump shaft made of high-quality carbon steel, the other main parts are made of cast iron. The pump body enters, and the outlet flange is respectively provided with a screw hole for installing a vacuum gauge and a pressure gauge. The packing seal is made of aluminum powder oil impregnated asbestos gong, packing ring and external pressure ring. The pump body can be rotated 90, 180° and 270° with the pump cover. The 6333 and 8B9 specifications are capable of 60 ", 120, 180 and 240 rotations. The matching single suction cantilever type centrifugal dish is used for conveying clean water and water with a temperature not exceeding 80 ° C, as well as exciters with material and chemical properties similar to water, which is suitable for industrial and mining enterprises, urban supply, drainage and farmland irrigation.




The New Year is coming. First of all, I wish you all the best luck in the Year of the Dragon. The end of the sprint a wave, the recent Guangzhou all one order row is full, thank the majority of users for our support and trust, did not receive the goods of friends please wait patiently, we full power production at the same time, each pump, equipment before the factory is strictly tested, multiple tests, to meet the qualified inspection standards will be released, sent to your hands. Quality and service are the two magic weapons for the whole pump industry to win in the master pump industry. At the end of the year, I will recommend you a wave of cost-effective pump product models: KTZ/KTB/GDD/FBX/QYWG/IS/, welcome new and old customers to break orders, we sincerely serve every friend.
