Products Description:
Model DL Vertical multistage centrifugal pump parameters:
Type: Vertical multistage
Material: foundry iron
Capacity: 9-504 m3 / h
Head: 25-268 meters
Power: 3 KW to 450 KW
Working voltage: 380V or 220V and others,like 100V to 240V
Liquid Temperature: -15 ℃ to +90 ℃
The motor speed: 1480 r/min
Delivery: clean water or liquid similar to clean water
Application:
1. supply for high building.
2. air-condioning water circulation
3. cooling water transport
4. cooling system ,industry water supply,clean water booster
5. Office buildings, water for construction
6. pure water reating sysems,pharmaceutical and fodd water supply
7. pressurized water supply for the technological process
8. hot water and cooling water cycle system

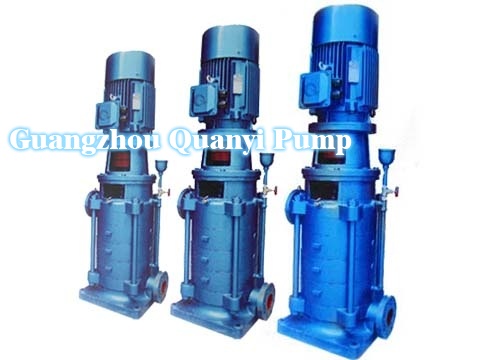

DL Vertical multistage centrifugal pump Picture:
Product Performance Date:
| DL Vertical multistage centrifugal pump parameter | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | Speed(r/min) |
| 40DL6-12×2 |
4.9 6.2 7.4 |
25.2 24 22 |
1.5 | 1480 |
|
40DL6-12×3 |
4.9 6.2 7.4 |
37.8 36 33 |
2.2 | 1480 |
| 40DL6-12×4 |
4.9 6.2 7.4 |
50.4 48 44 |
3 | 1480 |
| 40DL6-12×5 |
4.9 6.2 7.4 |
63 60 55 |
4 | 1480 |
| 40DL6-12×6 |
4.9 6.2 7.4 |
75.6 72 66 |
4 | 1480 |
| 40DL6-12×7 |
4.9 6.2 7.4 |
88.2 84 77 |
5.5 | 1480 |
| 40DL6-12×8 |
4.9 6.2 7.4 |
100.8 96 88 |
5.5 | 1480 |
| 40DL6-12×9 |
4.9 6.2 7.4 |
113.4 108 99 |
7.5 |
1480 |
| 40DL6-12×10 |
4.9 6.2 7.4 |
126 120 110 |
7.5 | 1480 |
| 40DL6-12×11 |
4.9 6.2 7.4 |
138.6 132 121 |
7.5 |
1480 |
| 40DL6-12×12 |
4.9 6.2 7.4 |
151.2 144 132 |
11 | 1480 |
| 50DL6-12-12.5×2 |
9.0 12.6 18.0 |
27 25 22 |
3 | 1480 |
| 50DL6-12-12.5×3 |
9.0 12.6 18.0 |
40.5 37.5 33 |
3 |
1480 |
| 50DL6-12-12.5×4 |
9.0 12.6 18.0 |
54 50 44 |
4 | 1480 |
| 50DL6-12-12.5×5 |
9.0 12.6 18.0 |
67.5 62.5 55 |
5.5 | 1480 |
| 50DL6-12-12.5×6 |
9.0 12.6 18.0 |
81 75 66 |
5.5 | 1480 |
| 50DL6-12-12.5×7 |
9.0 12.6 18.0 |
94.7 87.5 77 |
7.5 | 1480 |
| 50DL6-12-12.5×8 |
9.0 12.6 18.0 |
108 100 88 |
7.5 | 1480 |
| 50DL6-12-12.5×9 |
9.0 12.6 18.0 |
121.5 112.5 99 |
11 | 1480 |
| 50DL6-12-12.5×10 |
9.0 12.6 18.0 |
135 125 110 |
11 | 1480 |
| 65DL30-15×2 |
18 30 36 |
33 30 26 |
5.5 | 1480 |
| 65DL30-15×3 |
18 30 36 |
49.5 45 39 |
7.5 | 1480 |
| 65DL30-15×4 |
18 30 36 |
66 60 52 |
11 | 1480 |
| 65DL30-15×5 |
18 30 36 |
82.5 75 65 |
11 | 1480 |
| 65DL30-15×6 |
18 30 36 |
99 90 78 |
15 | 1480 |
| 65DL30-15×7 |
18 30 36 |
115.5 105 91 |
15 | 1480 |
| 65DL30-15×8 |
18 30 36 |
132 120 104 |
18.5 | 1480 |
| 65DL30-15×9 |
18 30 36 |
148.5 135 117 |
22 | 1480 |
| 65DL30-15×10 |
18 30 36 |
165 150 130 |
22 | 1480 |
| DL Vertical multistage centrifugal pump parameter | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | Speed(r/min) |
| 80DL54-20×2 |
32.4 54 65 |
42 40 36 |
11 | 1480 |
| 80DL54-20×3 |
32.4 54 65 |
63 60 54 |
15 | 1480 |
| 80DL54-20×4 |
32.4 54 65 |
84 80 72 |
22 | 1480 |
| 80DL54-20×5 |
32.4 54 65 |
105 100 90 |
30 | 1480 |
| 80DL54-20×6 |
32.4 54 65 |
126 120 108 |
30 | 1480 |
| 80DL54-20×7 |
32.4 54 65 |
147 140 126 |
37 | 1480 |
| 80DL54-20×8 |
32.4 54 65 |
168 160 144 |
45 | 1480 |
| 80DL54-20×9 |
32.4 54 65 |
189 180 162 |
45 | 1480 |
| 80DL54-20×10 |
32.4 54 65 |
210 200 180 |
55 | 1480 |
| 100DL72-20×2 |
50.4 72 90 |
45 40 36 |
18.5 | 1480 |
| 100DL72-20×3 |
50.4 72 90 |
67.5 60 54 |
22 | 1480 |
| 100DL72-20×4 |
50.4 72 90 |
90 80 72 |
30 | 1480 |
| 100DL72-20×5 |
50.4 72 90 |
112.5 100 90 |
37 | 1480 |
| 100DL72-20×6 |
50.4 72 90 |
135 120 106 |
45 | 1480 |
| 100DL72-20×7 |
50.4 72 90 |
157.5 140 126 |
55 | 1480 |
| 100DL72-20×8 |
50.4 72 90 |
180 160 144 |
55 | 1480 |
| 100DL72-20×9 |
50.4 72 90 |
202.5 180 162 |
79 | 1480 |
| 100DL72-20×10 |
50.4 72 90 |
225 200 180 |
75 | 1480 |
| 100DL108-20×2 |
72 108 126 |
46 40 36 |
22 | 1480 |
| 100DL108-20×3 |
72 108 126 |
69 60 54 |
30 | 1480 |
| 100DL108-20×4 |
72 108 126 |
92 80 72 |
37 | 1480 |
| 100DL108-20×5 |
72 108 126 |
115 100 90 |
45 | 1480 |
| 100DL108-20×6 |
72 108 126 |
138 120 106 |
55 | 1480 |
| 100DL108-20×7 |
72 108 126 |
161 140 126 |
75 | 1480 |
| 100DL108-20×8 |
72 108 126 |
184 160 144 |
75 | 1480 |
| 100DL108-20×9 |
72 108 126 |
207 180 162 |
90 | 1480 |
| 100DL108-20×10 |
72 108 126 |
230 200 180 |
90 | 1480 |
| DL Vertical multistage centrifugal pump parameter | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | Speed(r/min) |
| 150DL150-20×2 |
108 150 180 |
45 40 34 |
30 | 1480 |
|
150DL150-20×3 |
108 150 180 |
67.5 60 51 |
37 | 1480 |
| 150DL150-20×4 |
108 150 180 |
90 80 68 |
45 | 1480 |
| 150DL150-20×5 |
108 150 180 |
112.5 100 85 |
55 | 1480 |
| 150DL150-20×6 |
108 150 180 |
135 120 102 |
75 | 1480 |
| 150DL150-20×7 |
108 150 180 |
157.5 140 119 |
75 | 1480 |
| 150DL150-20×8 |
108 150 180 |
180 160 136 |
90 | 1480 |
| 150DL150-30×2 |
108 150 190.8 |
63 60 54 |
45 |
1480 |
| 150DL150-30×3 |
108 150 190.8 |
94.5 90 81 |
75 | 1480 |
| 150DL150-30×4 |
108 150 190.8 |
126 120 108 |
90 |
1480 |
| 150DL150-30×5 |
108 150 190.8 |
157.5 150 135 |
110 | 1480 |
| 150DL150-30×6 |
108 150 190.8 |
189 180 162 |
132 | 1480 |
| 150DL150-30×7 |
108 150 190.8 |
220.5 210 189 |
160 |
1480 |
| 150DL150-30×8 |
108 150 190.8 |
252 240 216 |
185 | 1480 |
| 150DL180-30×2 |
108 180 216 |
64 60 55 |
55 | 1480 |
| 150DL180-30×3 |
108 180 216 |
96 90 82.5 |
75 | 1480 |
| 150DL180-30×4 |
108 180 216 |
128 120 110 |
110 | 1480 |
| 150DL180-30×5 |
108 180 216 |
160 150 137.5 |
132 | 1480 |
| 150DL180-30×6 |
108 180 216 |
192 180 165 |
160 | 1480 |
| 150DL180-30×7 |
108 180 216 |
224 210 192.5 |
185 | 1480 |
| 150DL180-30×8 |
108 180 216 |
256 240 220 |
200 | 1480 |
| 150DL200-20×2 |
120 200 240 |
45 40 35 |
37 | 1480 |
| 150DL200-20×3 |
120 200 240 |
67.5 60 52 |
55 | 1480 |
| 150DL200-20×4 |
120 200 240 |
90 80 70 |
75 | 1480 |
| 150DL200-20×5 |
120 200 240 |
110 100 87 |
90 | 1480 |
| 150DL200-20×6 |
120 200 240 |
132.5 120 104.5 |
110 |
1480 |
