Products Description:
Model IZ type horizontal centrifugal pump series parameters:
Type: horizontal single-stage
Material: cast iron
Capacity: 7.5-120 m3 / h
Head: 18.5-127 meters
Power:1.5 KW to 37 KW
Working voltage: 380V,220V, 100V, 110V, 240V and others voltage,can customized voltage
Liquid Temperature: -15 ℃ to +80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
Delivery: non-corrosive liquids, such as water, liquid
Application:
1. water supplying, water boosting for high building.
2. agricultural irrigation, industrial and agricultural and urban water supply.
3. drainage ,industrial drainage
4. supply water pressurization, and pipe water cycle
5. Office buildings, water for construction
6. The village's water pressurization
7. pressurized water supply for the technological process
8. cooling towers, cooling water circulation, frozen water cycle and water supply systems in general

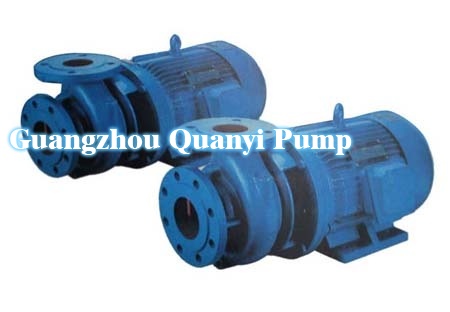

IZ type horizontal centrifugal pump picture:
Product Performance Date:
| IZ type horizontal centrifugal pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | Speed(r/min) |
| IZ50-32-125 |
7.5 12.5 15.0 |
22 20 18.5 |
2.2 | 2900 |
| IZ50-32-125A |
7.0 11.2 13.5 |
18 16 14 |
1.5 | 2900 |
| IZ50-32-125B |
6.2 10.4 12.5 |
15.2 13.5 12.5 |
1.1 | 2900 |
| IZ50-32-160 |
7.5 12.5 15.0 |
34 32 29 |
3 | 2900 |
| IZ50-32-160A |
7.0 11.8 14.0 |
30.3 28.0 26.0 |
2.2 | 2900 |
| IZ50-32-160B |
6.5 10.8 13.0 |
25.8 24 22.2 |
1.5 | 2900 |
| IZ50-32-200 |
7.5 12.5 15.0 |
52.5 50.0 48.0 |
5.5 | 2900 |
| IZ50-32-200A |
7.2 12 14.4 |
47.3 45 43.2 |
4 | 2900 |
| IZ50-32-200B |
6.5 10.8 13.0 |
39.8 38 36.4 |
3 | 2900 |
| IZ50-32-250 |
7.5 12.5 15.0 |
82 80 13.9 |
11 | 2900 |
| IZ50-32-250A |
7.0 11.7 14.0 |
71.8 70 68.8 |
7.5 | 2900 |
| IZ50-32-250B |
6.5 10.8 13 |
1.8 3.0 3.61 |
5.5 | 2900 |
| IZ65-50-125 |
15 25 30 |
21.8 20.0 18.5 |
3 | 2900 |
| IZ65-50-125A |
14.0 23.8 28.0 |
19.2 17.6 16.2 |
2.2 | 2900 |
| IZ65-50-125B |
11.5 19.0 22.0 |
12.5 11.5 10.5 |
1.5 | 2900 |
| IZ65-50-160 |
15 25 30 |
35 32 30 |
5.5 | 2900 |
| IZ65-50-160A |
14 23.4 28 |
30.5 28 26 |
4 | 2900 |
| IZ65-50-160B |
13 21.7 26 |
26.3 24 22.5 |
3 | 2900 |
| IZ65-40-200 |
15 25 30 |
53 50 47 |
7.5 | 2900 |
| IZ65-40-200A |
14 23.4 28 |
46.5 44 41 |
5.5 | 2900 |
| IZ65-40-200B |
12.6 21 24.1 |
37 35.3 33 |
4 | 2900 |
| IZ65-40-250 |
15 25 30 |
82 80 78 |
15 | 2900 |
| IZ65-40-250A |
14 23.4 28 |
72 70 68 |
11 | 2900 |
| IZ65-40-250B |
12.5 21.0 24 |
57 56 54 |
7.5 | 2900 |
| IZ65-40-315 |
15 25 30 |
127 125 123 |
30 | 2900 |
| IZ65-40-315A |
14.3 23.9 28.6 |
116 114 111 |
22 | 2900 |
| IZ65-40-315B |
13.6 22.7 27.2 |
105 103 101 |
18.5 | 2900 |
| IZ65-40-315C |
13 21.4 25.7 |
93 92 89 |
15 | 2900 |
| IZ80-65-125 |
30 50 60 |
22.5 20 18 |
5.5 | 2900 |
| IZ type horizontal centrifugal pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | Speed(r/min) |
| IZ80-65-125A |
28 46.7 56 |
18.6 16.6 14.9 |
4 | 2900 |
| IZ80-65-160 |
30 50 60 |
36 32 29 |
7.5 | 2900 |
| IZ80-65-160A |
28 46.8 56 |
31.4 28 25.3 |
5.5 | 2900 |
| IZ80-50-200 |
30 50 60 |
53 50 47 |
15 | 2900 |
| IZ80-50-200A |
28 46.8 56 |
47 44 41 |
11 | 2900 |
| IZ80-50-250 |
30 50 60 |
84 80 75 |
22 | 2900 |
| IZ80-50-250A |
28 46.8 56 |
73 70 65 |
18.5 | 2900 |
| IZ100-80-125 |
60 100 120 |
24 20 16.5 |
11 | 2900 |
| IZ100-80-125A |
56 93.5 112 |
20.3 17 14 |
7.5 | 2900 |
| IZ100-80-160 |
60 100 120 |
36 32 28 |
15 | 2900 |
| IZ100-80-160A |
56 93.5 114 |
31.5 28 24.5 |
11 | 2900 |
| IZ100-65-200 |
60 100 120 |
54 50 47 |
22 | 2900 |
| IZ100-65-200A |
56.5 93.5 112.7 |
47.5 44 41.5 |
18.5 | 2900 |
| IZ100-65-250 |
60 100 120 |
87 80 74.5 |
37 | 2900 |
| IZ100-65-250A |
56 93.5 31.1 |
76 70 65 |
30 | 2900 |
| IZ100-65-250B |
51.1 85.3 102.2 |
63.3 58.2 54.2 |
22 | 2900 |
