Products Description:
Model KTZ type horizontal quiet air conditioning pump series parameters:
Type: air condition pump
Material: foundry iron,ductile iron
The motor speed: 1450 r/min quiet motor
Capacity: 30-700m³ / h
Head: 13-50m meters
Power:4 KW to 110 KW
Working voltage: 220V or 380V, and other voltages: like 110V,130V, 240V ,the voltage can be customized
Liquid Temperature: -15 ℃ to +80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
Application:
1. central air-conditioning cooling circulation system
2. water boosting, high building water supply
3. pipeline water boosting
4. pumping hot and cold water for heating and cooling system
5. pressure boosting system
6. water supply for swimming pool and high building
7. Chilled water circulation system

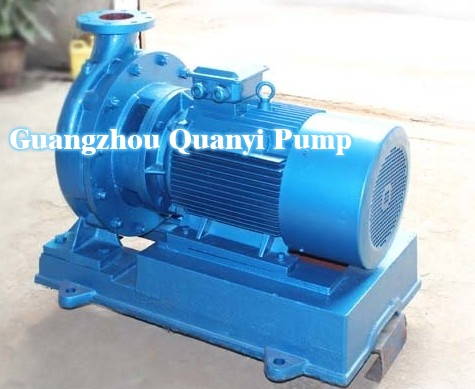

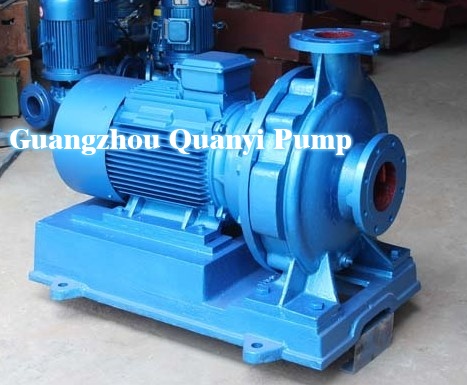

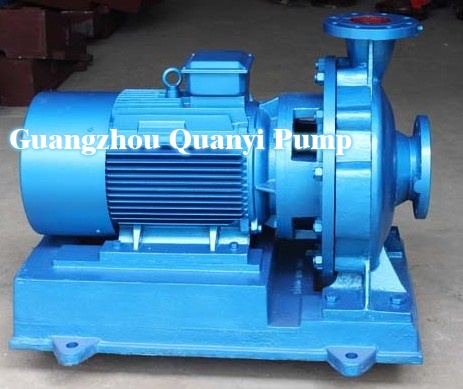

KTZ type horizontal quiet air conditioning pump Picture:
Product Performance Date:
| KTZ type horizontal quiet air conditioning pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | Speed(r/min) |
| KTZ100-65-210 |
35 55 66 |
15.3 14 13 |
4 | 1450 |
| KTZ100-65-250 |
30 50 60 |
21.3 20 19 |
5.5 | 1450 |
| KTZ100-65-315 |
30 50 60 |
34 32 30 |
11 | 1450 |
| KTZ100-65-320 |
40 65 78 |
37 34 31 |
15 | 1450 |
| KTZ100-65-320A |
37 62 74.5 |
33.4 30.9 28 |
11 | 1450 |
| KTZ125-100-200 |
60 100 120 |
14.5 12.5 11 |
7.5 | 1450 |
| KTZ125-100-200A |
56 93.5 112 |
12.8 11 9.7 |
5.5 | 1450 |
| KTZ125-100-250 |
60 100 120 |
21.5 20 18.5 |
11 | 1450 |
| KTZ125-100-250A |
56 93.5 112 |
18.8 17.5 16.2 |
7.5 | 1450 |
| KTZ125-100-250B |
52.2 86.5 104 |
16 15 13.9 |
5.5 | 1450 |
| KTZ125-100-315 |
60 100 120 |
33.5 32 30.5 |
15 | 1450 |
| KTZ125-100-315A |
57.4 95.5 114 |
30.5 28.5 27.8 |
15 | 1450 |
| KTZ125-100-315B |
54.6 90.8 108.9 |
27.7 26.4 25.8 |
11 | 1450 |
| KTZ125-100-400 |
60 100 120 |
52 50 48.5 |
30 | 1480 |
| KTZ125-100-400A |
56 93.6 112.4 |
46 44 43 |
22 | 1480 |
| KTZ125-100-400B |
52.2 88 105 |
40 38 37.2 |
18.5 | 1480 |
| KTZ125-100-210 |
90 142 170 |
15 13 11.5 |
11 | 1480 |
| KTZ125-100-260 |
95 148 175 |
24.5 22 20 |
15 | 1480 |
| KTZ125-100-320 |
80 146 165 |
37.5 34 29 |
22 | 1480 |
| KTZ125-100-320A |
78 142 165 |
32 28 25 |
18.5 | 1480 |
| KTZ125-100-410 |
90 150 176 |
57 52 48.5 |
45 | 1480 |
| KTZ125-100-410A |
87 144 172 |
52 48 44 |
37 | 1480 |
| KTZ125-100-410B |
83 140 165 |
45 40 38 |
30 | 1480 |
| KTZ150-125-250 |
120 200 240 |
22.5 20 17.5 |
18.5 | 1480 |
| KTZ150-125-250A |
112 187 224 |
19.5 17.5 15.2 |
15 | 1480 |
| KTZ150-125-260 |
144 240 288 |
23.5 21 18.1 |
22 | 1480 |
| KTZ150-125-260A |
134 230 280 |
21 18.5 16.5 |
18.5 | 1480 |
| KTZ150-125-315 |
120 200 240 |
34 32 29 |
30 | 1480 |
| KTZ150-125-315A |
112 187 224.6 |
30 28 25 |
22 | 1480 |
| KTZ type horizontal quiet air conditioning pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | Speed(r/min) |
| KTZ150-125-315B |
104 173 208 |
25.5 24 21.8 |
18.5 | 1480 |
| KTZ150-125-320 |
144 240 288 |
34 32 28 |
30 | 1480 |
| KTZ150-125-320A |
134 230 270 |
29 26 22 |
22 | 1480 |
| KTZ150-125-400 |
120 200 240 |
53 50 46 |
45 | 1480 |
| KTZ150-125-400A |
112 187 225 |
47 44 40 |
37 | 1480 |
| KTZ150-125-400B |
105 173 210 |
40 38 35 |
30 | 1480 |
| KTZ150-125-410 |
144 245 300 |
55 50 44 |
55 | 1480 |
| KTZ150-125-410A |
144 245 300 |
52 45 38 |
45 | 1480 |
| KTZ200-150-260 |
189 315 378 |
22.6 20 17.5 |
30 | 1480 |
| KTZ200-150-260A |
200 280 340 |
18.8 16.2 14 |
22 | 1480 |
| KTZ200-150-250 |
240 400 460 |
20.6 20 17.2 |
37 | 1480 |
| KTZ200-150-250A |
225 374 431 |
19.4 17.5 15.6 |
30 | 1480 |
| KTZ200-150-320 |
189 315 378 |
36 32 29.4 |
45 | 1480 |
| KTZ200-150-320A |
200 280 340 |
33 28 25 |
37 | 1480 |
| KTZ200-150-315 |
240 400 460 |
37 32 28.5 |
55 | 1480 |
| KTZ200-150-315A |
226 374 432 |
33 28 25 |
45 | 1480 |
| KTZ200-150-315B |
210 350 403 |
27.5 24 21.2 |
37 | 1480 |
| KTZ200-150-400 |
240 400 460 |
55 50 45 |
90 | 1480 |
| KTZ200-150-400A |
228 380 437 |
49 44.5 40 |
75 | 1480 |
| KTZ200-150-400B |
210 340 401 |
42 38 34 |
55 | 1480 |
| KTZ200-150-410 |
195 315 378 |
55 52 46 |
75 | 1480 |
| KTZ200-150-410A |
190 300 360 |
50 46 41 |
55 | 1480 |
| KTZ250-200-300 |
486 630 720 |
30 26 22 |
55 | 1480 |
| KTZ250-200-300A |
432 560 650 |
26 21 17 |
45 | 1480 |
| KTZ250-200-400 |
486 630 720 |
50 45 38 |
110 | 1480 |
| KTZ250-200-400A |
432 558 710 |
43 38 32 |
90 | 1480 |
| KTZ250-200-400B |
428 550 700 |
37 32 26 |
75 |
1480 |
