Centrifugal Impeller Pump

KTS type double suction large capacity pump

产品介绍销售记录

Products Description:

Model KTS type double suction large capacity pump series parameters:

Type: double suction

Material: foundry iron

Capacity: 280-1440 m3 / h

Head: 16-58 meters
Power: 30 KW to 250 KW
Working voltage: 380V,220V, 100V, 110V, 240V and others voltage,can customized voltage

Liquid Temperature: -15 ℃ to +80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 1480r/min for choice

Delivery: non-corrosive liquids, such as water, liquid

Application:

1. water supplying, water boosting for factory.

2. agricultural irrigation, industrial and agricultural and urban water supply.

3. drainage ,industrial drainage

4. drainage the swimming pool, or recreation water center

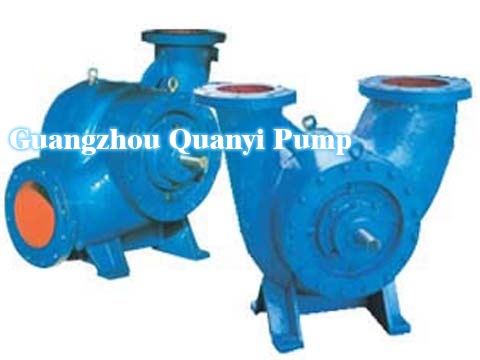

KTS type double suction large capacity pump picture:

Product Performance Date:

KTS type double suction large capacity pump
Model	Capacity(m3 /h)	Head(m)	Power(KW)	Speed(r/min)
200KTS280-42	216 280 342	48 42 35	45	1480
200KTS280－42A	198 270 310	43 36 31	37	1480
200KTS280－42B	188 266 300	36 30 26	30	1480
200KTS280－42C	175 250 300	30 25 21	30	1480
200KTS350－42	300 350 400	45 42 38	55	1480
200KTS350－42A	300 350 400	38 35 31.5	45	1480
200KTS350－42B	300 350 400	32 29 26	37	1480
250KTS485－24	360 485 572	27 24 19	45	1480
250KTS485－24A	342 414 482	22.2 20.3 17.4	37	1480
250KTS500－38	360 500 612	42.5 38 32.5	75	1480
250KTS500－38A	324 468 576	35.5 31.5 25	55	1480
250KTS500－50	360 500 612	53 50 46	110	1480
250KTS500－50A	324 468 576	47 44 40	90	`1480
250KTS630－24	445 630 758	27.5 24 19	55	1480
250KTS630－24A	420 600 725	22 20 17	45	1480
250KTS630－38	445 630 758	42 38 32	90	1480
250KTS630－38A	420 600 725	36 32 26	75	1480
250KTS630－50	445 630 758	53 50 46	132	1480
250KTS630－50A	420 600 725	45 42 38	110	1480
300KTS800－25	612 800 915	27 25 20	75	1480
300KTS800－25A	560 750 850	23 20 17	55	1480
300KTS800－38	612 800 915	42.5 38 32.5	110	1480
300KTS800－38A	540 765 850	36 32 28	90	1480
300KTS800－38B	530 750 840	32 28 24	75	1480
350KTS1260－44	972 1260 1476	50 44 37	220	1480
350KTS1260－44A	864 1200 1332	41 36 30	160	1480
350KTS1260－70	600 900 1100	75 70 63	250	1480
