Products Description:
Model QBY Pneumatic diaphragm pump series parameters:
Material: aluminum/foundary iron/stainless steel
Capacity: 0.5-20m³/h
Head: 30 meter
Power: 0.55-5.5KW
Application:
1. some kinds of corrosive liquid
2. carring with particles in liquid
3. high viscosity thick liquid
4. volatile flammable liquid
5. paint, plastic, slag,chemicals and etc

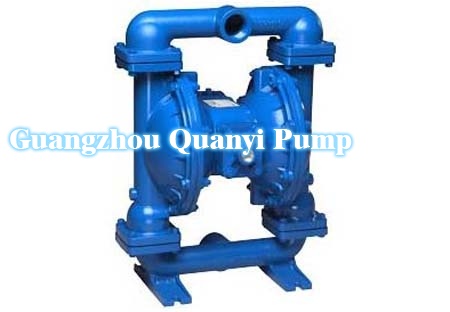

QBY Pneumatic diaphragm pump Product Picture:
Product Performance Date:
| Model |
Capacity (m3/h) |
Head (m) |
Outlet pressure (kgf/cm2) |
suction (m) |
Maximum allowable particles (mm) |
maximum air supply pressure (kbf/cm2) |
largest gas consumption (m3/min) |
| QBY-10 | 0～0.8 | 0～50 | 6 | 5 | 1 | 7 | 0.3 |
| QBY-15 | 0～1 | 0～50 | 6 | 5 | 1 | 7 | 0.3 |
| QBY-25 | 0～2.4 | 0～50 | 6 | 7 | 2.5 | 7 | 0.6 |
| QBY-40 | 0～8 | 0～50 | 6 | 7 | 4.5 | 7 | 0.6 |
| QBY-50 | 0～12 | 0～50 | 6 | 7 | 8 | 7 | 0.9 |
| QBY-65 | 0～16 | 0～50 | 6 | 7 | 8 | 7 | 0.9 |
| QBY-80 | 0～24 | 0～50 | 6 | 7 | 10 | 7 | 1.5 |
| QBY-100 | 0～30 | 0～50 | 6 | 7 | 10 | 7 | 1.5 |
