Products Description:
Model DW type stainless steel pump series parameters:
Capacity: 0.5-22m3 / h
Head: 11-49meters
attribute: horizontal multi-stage
Motor protection grade: IP55/IP54
Power: 0.37KW to 3KW
Working voltage: 220V or 380V
Liquid Temperature: -15 ℃ to + 80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
The maximum working pressure: 8 bar
The pump can be used at full head without overloading motor
Material: pump casing, back cover, impeller and the pump shaft are made of 304 stainless steel
Application:
1. transporting clean water and light corrosive liquid, glycol solution and other liquid which must be allowed by dealer.
2. apply on industrial applications, domestic booster, washing pool, and irrigation etc.
3. water supply systems
4. pressure boiler feeding
5. pure water treating systems
6. pharmaceutical & food stuff
7. refining chemical industries
8. washing and sprinkling

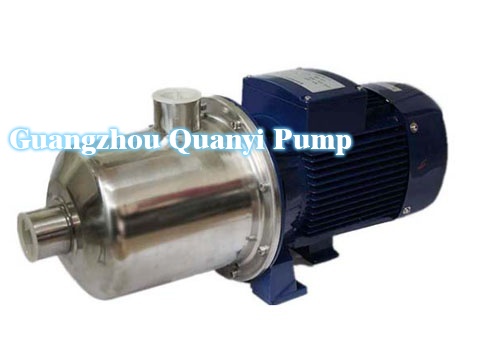

Product Picture:
Product Performance Date:
| DW horizontal multi-stage stainless steel pump(220V&380V) | ||||||||||
| Model | Power | Capacity | L/min | 8.3 | 16.7 | 25 | 33.3 | 41.7 | 50 | 58.3 |
| m³/h | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | |||
| DW2-20/037 | 370W | Head | Meter | 18 | 17 | 16 | 15 | 14 | 13 | 11 |
| DW2-30/037 | 370W | Head | Meter | 26 | 25 | 24 | 22.5 | 21 | 19 | 16 |
| DW2-40/055 | 550W | Head | Meter | 35 | 32.5 | 31 | 29.5 | 27.5 | 25.5 | 21 |
| DW2-50/055 | 550W | Head | Meter | 44 | 41 | 39 | 36.5 | 34 | 31 | 26 |
| DW2-60/075 | 750W | Head | Meter | 53 | 50 | 47 | 44 | 40 | 36 | 30 |
| DW horizontal multi-stage stainless steel pump(220V&380V) | ||||||||||
| Model | Power | Capacity | L/min | 16.7 | 33.3 | 50 | 66.7 | 83.3 | 100 | 116.7 |
| m³/h | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |||
| DW4-20/055 | 550W | Head | Meter | 18 | 17 | 16.5 | 15.5 | 14.5 | 13 | 11 |
| DW4-30/055 | 550W | Head | Meter | 27 | 26 | 25 | 24 | 22.5 | 20 | 17.5 |
| DW4-40/075 | 750W | Head | Meter | 36 | 35 | 33.5 | 32 | 29.5 | 26.5 | 23 |
| DW horizontal multi-stage stainless steel pump(220V&380V) | |||||||||||
| Model | Power | Capacity | L/min | 83.3 | 100 | 116.7 | 133.3 | 150 | 166.7 | 183.3 | 200 |
| m³/h | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||
| DW8-20/075 | 750W | Head | Meter | 20 | 19.5 | 18.5 | 18 | 17.5 | 16.5 | 15.5 | 14 |
| DW8-30/110 | 1100W | Head | Meter | 29.5 | 29 | 28 | 27 | 26 | 24.5 | 23 | 21 |
| DW8-40/150 | 1500W | Head | Meter | 39 | 38 | 37 | 36 | 35 | 33 | 31 | 29 |
| DW8-50/220 | 2200W | Head | Meter | 49 | 48 | 46.5 | 45 | 43.5 | 41 | 39 | 36 |
