Products Description:
Model WB type stainless steel pump series parameters:
Capacity: 1.2-15.6 m3 / h
Head: 7-39 meters
Motor protection grade: IP55/IP54
Power: 0.25 KW to 1.85 KW
Working voltage: 220V or 380V
Liquid Temperature: -15 ℃ to + 80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
The maximum working pressure: 8 bar
The pump can be used at full head without overloading motor
Material: pump casing, back cover, impeller and the pump shaft are made of 304 stainless steel
Application:
1. transporting clean water and light corrosive liquid, glycol solution and other liquid which must be allowed by dealer.
2. apply on industrial applications, domestic booster, washing pool, and irrigation etc.
3. water supply systems
4. pressure boiler feeding
5. pure water treating systems
6. pharmaceutical & food stuff
7. refining chemical industries
8. washing and sprinkling

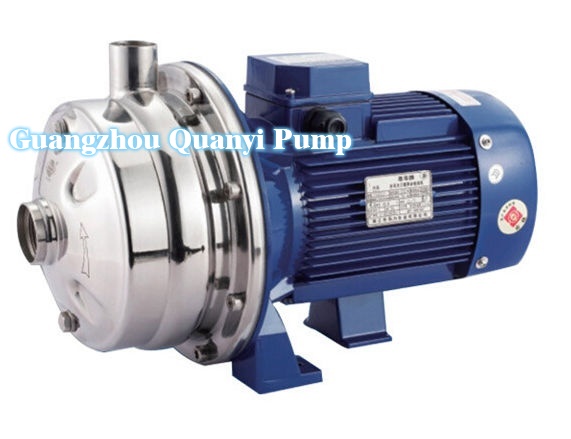

Product Picture:
Product Performance Date:
| WB stainless steel parameter(220V& 380V) | ||||||||||||
| Model |
Input Caliber (mm) |
Output Caliber (mm) |
Power (KW) |
Capacity | L/min | 20 | 40 | 60 | 70 | 80 | 100 | 120 |
| m³/h | 1.2 | 2.4 | 3.6 | 4.2 | 4.8 | 6.0 | 7.2 | |||||
| WB50/025 | 32 | 25 | 0.25 | Head | Meter | 11.5 | 10.5 | 9 | 8 | 7 | ||
| WB50/037 | 32 | 25 | 0.37 | Head | Meter | 14.5 | 13.5 | 13 | 12.5 | 12 | 11.5 | |
| WB70/037 | 32 | 25 | 0.37 | Head | Meter | 15.5 | 15 | 14 | 13.5 | 13 | 11.5 | 9 |
| WB70/055 | 32 | 25 | 0.55 | Head | Meter | 20.5 | 20 | 19 | 18.5 | 18 | 17 | 15 |
| WB70/075 | 32 | 25 | 0.75 | Head | Meter | 25 | 24 | 23.5 | 23 | 22 | 21 | 19 |
| WB70/090 | 32 | 25 | 0.9 | Head | Meter | 28.5 | 27.5 | 27 | 26.5 | 26 | 25 | 23.5 |
| WB70/110 | 32 | 25 | 1.1 | Head | Meter | 35.5 | 34.5 | 33.5 | 33 | 32 | 31 | 30 |
| WB stainless steel parameter(220V& 380V) | ||||||||||||||
| Model |
Input Caliber (mm) |
Output Caliber (mm) |
Power (KW) |
Capacity | L/min | 40 | 60 | 70 | 80 | 100 | 120 | 140 | 160 | 180 |
| m³/h | 2.4 | 3.6 | 4.2 | 4.8 | 6.0 | 7.2 | 8.4 | 9.6 | 10.8 | |||||
| WB120/075 | 32 | 25 | 0.75 | Head | Meter | 23 | 22 | 21.5 | 21 | 20.5 | 19.5 | 18.5 | 17 | 16 |
| WB120/110 | 32 | 25 | 1.1 | Head | Meter | 29.5 | 28.5 | 28 | 27.5 | 26.5 | 25.5 | 24 | 22.5 | 21 |
| WB120/150 | 32 | 25 | 1.5 | Head | Meter | 32.5 | 32 | 31.5 | 31 | 30.5 | 29.5 | 28 | 26.5 | 25 |
| WB120/185 | 32 | 25 | 1.85 | Head | Meter | 39 | 37.5 | 37 | 36.5 | 35 | 34 | 32.5 | 31.5 | 30 |
| WB stainless steel parameter(220V& 380V) | |||||||||||||||||
| Model |
Input Caliber (mm) |
Output Caliber (mm) |
Power (KW) |
Capacity | L/min | 60 | 70 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 | 260 |
| m³/h | 3.6 | 4.2 | 4.8 | 6.0 | 7.2 | 8.4 | 9.6 | 10.8 | 12 | 13.2 | 14.4 | 15.6 | |||||
| WB200/075 | 40 | 25 | 0.75 | Head | Meter | 19 | 18.5 | 18 | 17.5 | 17 | 16.5 | 15.5 | 14.5 | 13.5 | 12 | 11 | 9.5 |
| WB200/110 | 40 | 25 | 1.1 | Head | Meter | 24 | 23.5 | 23 | 22.5 | 22 | 21 | 20 | 19.5 | 18.5 | 17.5 | 16.5 | 15.5 |
| WB200/150 | 40 | 25 | 1.5 | Head | Meter | 27 | 26.5 | 26 | 25.5 | 25 | 24.5 | 24 | 23 | 22 | 21 | 20 | 19 |
| WB200/185 | 40 | 25 | 1.85 | Head | Meter | 31 | 30.5 | 30 | 29.5 | 29 | 28 | 27 | 26 | 25.5 | 24.5 | 23.5 | 22.5 |
