FB stainless steel corrosion resistant acid alkali pump

产品介绍销售记录

Products Description:

Model FB type stainless steel pump series parameters:

Capacity: 0.6-350 m3 / h

Head: 35-46.5 meters
Power: 0.12 KW to 30 KW
Working voltage: 220V or 380V

Liquid Temperature: FB≤ 90 ℃,FBT≤ 110 ℃
The motor speed: 2900 r/min
Material: pump casing, back cover, impeller and the pump shaft are made of 304 or 316 stainless steel

Performance: corrosion resistant, acidresistant, alkali resistant

Application:

1. Environmental protection, chemical, pharmaceutical

2. Electroplating, deeing, sewage process

3. Food,beverage

4. Acid, alkali liquid, Organic solvent and inorganic solvents liquid

Attention: Some chemical raw materials was limited by the temperature and the concentration, if there's any question, can inquiry customer service.

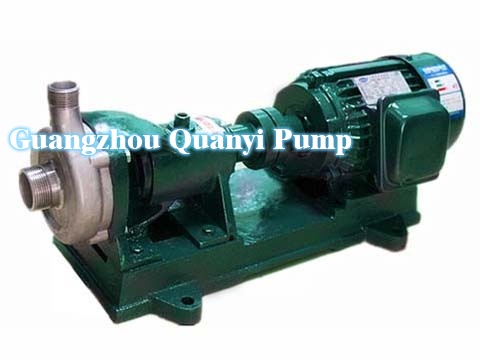

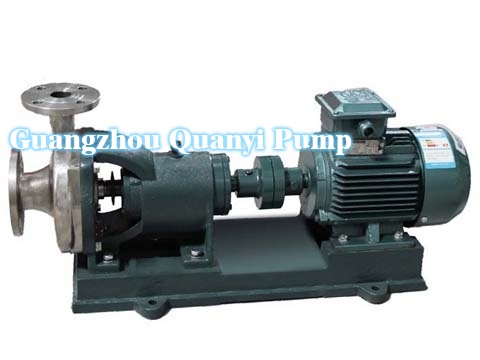

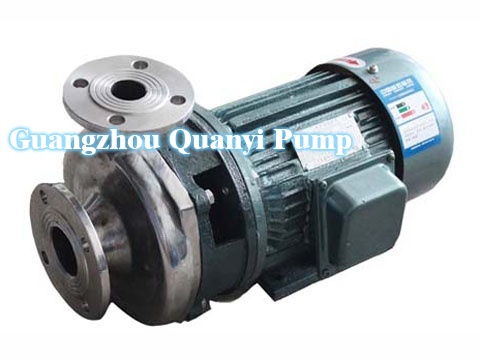

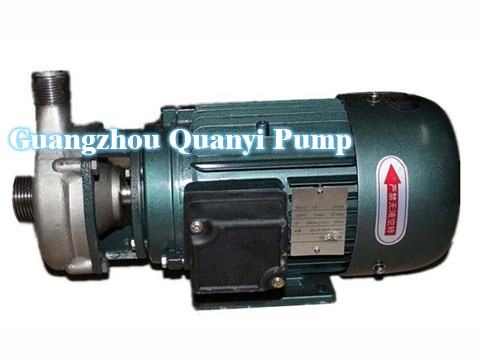

Product Picture:

Product Performance Date:

Model	Power	Input Caliber (mm)	Output Caliber (mm)	Capacity(m³/h)
Model	Power	Input Caliber (mm)	Output Caliber (mm)	Head(m)
20FB-8 20FB-8D	0.18KW /0.12KW	20	15	Capacity	0.6	0.7	0.9	1.5	1.8	2.6	2.8
20FB-8 20FB-8D	0.18KW /0.12KW	20	15	Head	11	10	9	8	6.6	4	3
25FB-8 25FB-8D	0.25KW	25	20	Capacity	0.7	2.5	4	5.5	6.2	7	7.5
25FB-8 25FB-8D	0.25KW	25	20	Head	11	10	8	6	5	4	3
40FB-13 40FB-13D	0.55/0.75KW	40	25	Capacity	2.5	4	5.3	6	8.3	10.8	13
40FB-13 40FB-13D	0.55/0.75KW	40	25	Head	16	15	14	13	11	8	5
40FB-13T 40FB-13DT	0.75KW	40	25	Capacity	2.5	4	5.3	6	8.3	10.8	13
40FB-13T 40FB-13DT	0.75KW	40	25	Head	16	15	14	13	11	8	5
50FB-18 50FB-18D	1.5KW	50	40	Capacity	3.5	4.3	9	13	15.5	16.5	18
50FB-18 50FB-18D	1.5KW	50	40	Head	22	21	20	18	16	15	14
50FB-18T 50FB-18DT	1.5KW	50	40	Capacity	3.5	4.3	9	13	15.5	16.5	18
50FB-18T 50FB-18DT	1.5KW	50	40	Head	22	21	20	18	16	15	14
50FB-22 50FB-22T	2.2KW	50	40	Capacity	9.5	10	16	19	22	23	24
50FB-22 50FB-22T	2.2KW	50	40	Head	26	25	24	22	20	18	17
50FB-25 50FB-25T	3KW	50	40	Capacity	5	12	19	23	24	26	28
50FB-25 50FB-25T	3KW	50	40	Head	32	30	27	25	24	22	19
50FB-25D 50FB-25DT	3KW	50	40	Capacity	5	12	19	23	24	26	28
50FB-25D 50FB-25DT	3KW	50	40	Head	32	30	27	25	24	22	19
50FB-28 50FB-28T	2.2KW	50	32	Capacity	7.8	8	10	13	15	16.9	19
50FB-28 50FB-28T	2.2KW	50	32	Head	33	32	30	28	25	23	19
50FB-28A 50FB-28AT	1.5KW	50	32	Capacity	6.3	8	10	10.5	12	13	13.7
50FB-28A 50FB-28AT	1.5KW	50	32	Head	26	25	24	23	21	20	19
50FB-38 50FB-38T	4KW	50	32	Capacity	9.6	12	14	16	19	22	21
50FB-38 50FB-38T	4KW	50	32	Head	44	42	40	38	35	34	33
50FB-38A 50FB-38AT	3KW	50	32	Capacity	9	12	14	15	19	22	20
50FB-38A 50FB-38AT	3KW	50	32	Head	36	35	33	32	31	29	27
65FB-32 65FB-32T	5.5KW	65	50	Capacity	15	20	23	25	28	30	32
65FB-32 65FB-32T	5.5KW	65	50	Head	36	34	33	32	30	29	27
65FB-50 65FB-50T	7.5KW	65	40	Capacity	15	18	21	25	28	31	30
65FB-50 65FB-50T	7.5KW	65	40	Head	53	52	51	50	49	48	47
65FB-50A 65FB-50AT	5.5KW	65	40	Capacity	14	18	21	24	25	26	28
65FB-50A 65FB-50AT	5.5KW	65	40	Head	46.5	46	45	44	43	42	41
65FB-50B 65FB-50BT	4KW	65	40	Capacity	12.5	16	19	21	22	23	24
65FB-50B 65FB-50BT	4KW	65	40	Head	37	36.5	36	35.3	35	34	33
80FB-32 80FB-32T	7.5KW	80	50	Capacity	30	36	42	50	53	57	60
80FB-32 80FB-32T	7.5KW	80	50	Head	36	34	33	32	31	30	29
80FB-32A 80FB-32AT	5.5KW	80	50	Capacity	28	36	42	47	50	53	56
80FB-32A 80FB-32AT	5.5KW	80	50	Head	31.4	30	29	28	27	26	25.3
80FB-32B 80FB-32BT	5.5KW	80	50	Capacity	25	30	36	42	45	48	50
80FB-32B 80FB-32BT	5.5KW	80	50	Head	25	24	23	22	21.6	21	20
100FB-20 100FB-20T	7.5KW	100	80	Capacity	54	70	79	90	98	108	122
100FB-20 100FB-20T	7.5KW	100	80	Head	24	23	22	20	18	16	14
100FB-20A 100FB-20AT	5.5KW	100	80	Capacity	50	64	75	85	89	94	102
100FB-20A 100FB-20AT	5.5KW	100	80	Head	18	17	15	12.5	12	11	10

Model	Power	Input Caliber (mm)	Output Caliber (mm)	Capacity(m³/h)
Model	Power	Input Caliber (mm)	Output Caliber (mm)	Head(m)
100FB-32	15KW	100	80	Capacity	60	75	85	100	109	120	124
100FB-32	15KW	100	80	Head	36	35	34	32	30	28	27
100FB-32A	11KW	100	80	Capacity	40	56	78	93.5	107	114	123
100FB-32A	11KW	100	80	Head	32	31.5	30	28	26	24.5	23
125FB-32	22KW	125	100	Capacity	96	100	120	160	175	192	200
125FB-32	22KW	125	100	Head	37	35	34	32	30	27	24
125FB-32A	18.5KW	125	100	Capacity	50	90	130	150	172	180	200
125FB-32A	18.5KW	125	100	Head	34	32	30	28	25	23	21
125FB-32B	15KW	125	100	Capacity	84	102	120	140	158	168	180
125FB-32B	15KW	125	100	Head	25	24	23	22	20	19	18
125FB-150	15KW	125	100	Capacity	90	100	130	150	170	190	200
125FB-150	15KW	125	100	Head	26	24	20	18	16	14	12
125FB-160	18.5KW	125	100	Capacity	60	100	120	140	180	200	220
125FB-160	18.5KW	125	100	Head	30	28	26	24	20	18	16
125FB-180	22KW	125	100	Capacity	120	140	160	200	210	220	230
125FB-180	22KW	125	100	Head	32	28	24	20	18	16	12
125FB-190	30KW	125	100	Capacity	100	160	180	200	210	220	230
125FB-190	30KW	125	100	Head	38	34	30	26	23	20	18
150FB-32	30KW	150	125	Capacity	120	150	177	200	230	240	265
150FB-32	30KW	150	125	Head	39	36	34	32	30	27.5	26
150FB-32A	22KW	150	125	Capacity	105	140	160	180	192	205	215
150FB-32A	22KW	150	125	Head	33	30	28	26	25	24	23
200FB-28	30KW	150	125	Capacity	180	210	270	300	315	330	350
200FB-28	30KW	150	125	Head	36	34	30	28	26	24	21
