Products Description:
Model GDF inline pump series parameters:
Capacity: 1.5-340 m3 / h
Head: 10-50meters
Power: 0.46 KW to 30KW
Working voltage: 220V or 380V
Liquid Temperature: ≤ 100 ℃
The motor speed: 2900 r/min
Material: pump casing, back cover, impeller and the pump shaft are made of 304 or 316 stainless steel
Performance: corrosion resistant, acidresistant, alkali resistant
Application:
1. Environmental protection, chemical, pharmaceutical
2. Electroplating, deeing, sewage process
3. Food,beverage
4. Acid, alkali liquid, Organic solvent and inorganic solvents liquid
Attention: Some chemical raw materials was limited by the temperature and the concentration, if there's any question, can inquiry customer service.

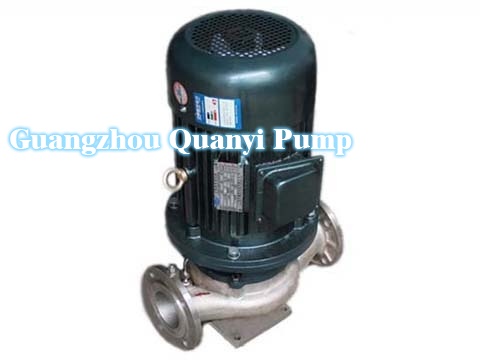

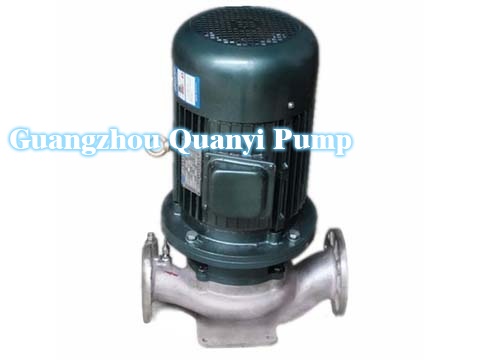

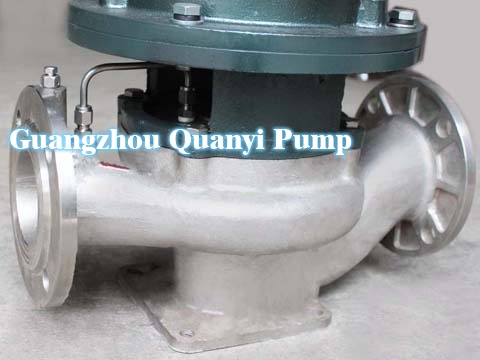

Product Picture:
Product Performance Date:
| GDF inline pump series parameters | ||||
| Model |
Capacity (m³ /h) |
Head (m) |
Power (KW) |
Speed (r/min) |
|
GDF25-15 |
1.5 4 6.5 |
20 15 10 |
0.46 | 2800 |
| GDF32-20 |
3 6 8 |
23 20 15 |
0.75 | 2800 |
| GDF40-15 |
7.2 11.4 15.6 |
16 15 12 |
1.1 | 2900 |
| GDF40-20 |
7.2 11.4 15.6 |
21 20 16 |
1.5 | 2900 |
| GDF40-30 |
7.2 11.4 15.6 |
33 30 23 |
2.2 | 2900 |
| GDF50-8 |
10.8 18 22 |
9.5 8 7 |
0.75 | 2900 |
| GDF50-17 |
10.8 18 25.2 |
21 17.5 13.5 |
1.5 | 2900 |
| GDF50-30 |
10.8 18 25.2 |
33 30 23 |
3 | 2900 |
| GDF50-40 |
10.8 18 25.2 |
42 40 33 |
4 | 2900 |
| GDF50-50 |
10.8 18 25.2 |
52 50 42 |
5.5 | 2900 |
| GDF65-19 |
18 25.2 36 |
20 19 14 |
2.2 | 2900 |
| GDF65-30 |
18 25.2 36 |
33 30 23 |
4 | 2900 |
| GDF65-50 |
18 25.2 36 |
52 50 42 |
7.5 | 2900 |
| GDF inline pump series parameters | ||||
| Model |
Capacity (m³ /h) |
Head (m) |
Power (KW) |
Speed (r/min) |
| GDF80-21 |
30 42 54 |
24 21 16 |
4 | 2900 |
| GDF80-30 |
30 42 54 |
33 30 23 |
5.5 | 2900 |
| GDF80-40 |
30 42 54 |
43 40 32 |
7.5 | 2900 |
| GDF80-50 |
30 42 54 |
52 50 42 |
11 | 2900 |
| GDF100-19 |
60 90 120 |
21 19 14 |
7.5 | 2900 |
| GDF100-21 |
39 60 75 |
24 21 16 |
5.5 | 2900 |
| GDF100-30 |
30 50 60 |
32 30 23 |
7.5 | 2900 |
| GDF100-32 |
60 90 120 |
34 32 29 |
15 | 2900 |
| GDF100-32A |
60 90 120 |
30 28 26 |
11 | 2900 |
| GDF100-50 |
30 50 60 |
52 50 42 |
15 | 2900 |
| GDF125-20 |
110 160 200 |
23 20 17 |
15 | 1480 |
| GDF150-20 |
120 200 240 |
23 20 17.5 |
18.5 | 1480 |
| GDF200-18 |
200 280 340 |
20 18 15 |
22 | 1480 |
| GDF200-24 |
200 280 340 |
26 24 21 |
30 | 1480 |
