Products Description:
Model GD inline pump Water booster pump series parameters:
Type: Vertical single-stage
Material: casing and back cover:cast iron
Capacity: 2.5-120 m3 / h
Head: 7.5-87 meters
Power: 0.46 KW to 90 KW
Working voltage: 380V,220V, 100V, 110V, 240V and others voltage
Liquid Temperature: -15 ℃ to +80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
Over loadprotector in three phase is available upon request
Application:
1. transporting clean water and light corrosive liquid.
2. water boosting, water supply for high building
3. industrial applications
4. The household pipe boosting, supply water pressurization, and pipe water cycle
5. Office buildings, water for construction
6. The village's water pressurization
7. pressurized water supply for the technological process
8. Household or factory water pressurized water supply, etc
9. Air conditioning systems, cooling towers, cooling water circulation, frozen water cycle and water supply systems in general
GD Vertical single-stage inline pump Water booster pump Product Picture:

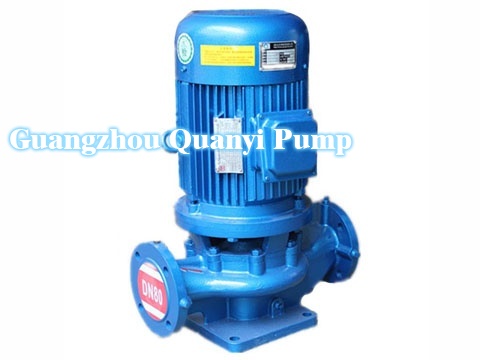

The following picture is Vertical single-stage pump with two energy-efficient motor

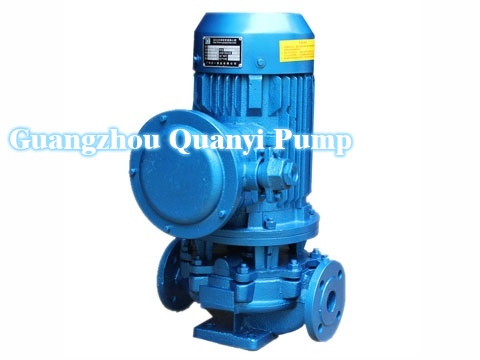

The following picture is GD inline pump with explosion-proof motor
Product Performance Date:
| GD inline pump Water series parameters | ||||
| Model |
Capacity (m³ /h) |
Head (m) |
Power (KW) |
Speed (r/min) |
| GD25-15 |
2.5 4 5 |
18 15 12 |
0.46 | 2800 |
| GD32-20 |
3.6 6 7.2 |
21 20 19 |
0.75 | 2800 |
|
GD40-15 |
7.2 11.4 15.6 |
16 15 12 |
1.1 | 2900 |
| GD40-20 |
7.2 11.4 15.6 |
20.5 20 18 |
1.5 | 2900 |
| GD40-30 |
7.2 11.4 15.6 |
33 30 27.5 |
2.2 | 2900 |
| GD40-50 |
7.2 11.4 15.6 |
53 50 48 |
4 | 2900 |
| GD50-8 |
10.8 18 21.6 |
9.5 8 7.5 |
0.75 | 2900 |
| GD50-17 |
10.8 18 21.6 |
18.4 17 15.6 |
1.5 | 2900 |
| GD50-20 |
7.5 12.5 15 |
22 20 18.5 |
1.5 | 2900 |
|
GD50-30 |
10.8 18 21.6 |
32 30 26 |
3 | 2900 |
|
GD50-40 |
10.8 18 21.6 |
42 40 33 |
4 | 2900 |
| GD50-50 |
10.8 18 21.6 |
52 50 42 |
5.5 | 2900 |
| GD65-19 |
15 25 30 |
21 19 17 |
2.2 | 2900 |
| GD65-30 |
15 25 30 |
32 30 27 |
4 | 2900 |
| GD65-50 |
15 25 30 |
53 50 45 |
7.5 | 2900 |
| GD65-80 |
15 25 30 |
82 80 78 |
15 | 2900 |
| GD inline pump Water series parameters | ||||
| Model |
Capacity (m³ /h) |
Head (m) |
Power (KW) |
Speed (r/min) |
|
GD80-21 |
30 42 54 |
24 21 16 |
4 | 2900 |
| GD80-30 |
30 42 54 |
33 30 23 |
5.5 | 2900 |
| GD80-40 |
30 42 54 |
43 40 32 |
7.5 | 2900 |
| GD80-50 |
30 42 54 |
52 50 42 |
11 | 2900 |
| GD80-80 |
30 50 60 |
83 80 75 |
22 | 2900 |
|
GD100-19 |
60 90 120 |
21 19 14 |
7.5 | 2900 |
| GD100-19A |
50 80 110 |
17 15 11.5 |
5.5 | 2900 |
| GD100-21 |
39 60 75 |
24 21 16 |
5.5 | 2900 |
| GD100-30 |
30 50 60 |
32 30 23 |
7.5 | 2900 |
| GD100-32 |
60 100 120 |
35 32 28 |
15 | 2900 |
| GD100-32A |
60 90 120 |
30 28 26 |
11 | 2900 |
| GD100-50 |
30 50 60 |
52 50 42 |
15 | 2900 |
| GD100-50A |
30 50 60 |
50 46 43 |
11 | 2900 |
| GD100-80 |
60 100 120 |
87 80 74.5 |
37 | 2950 |
| GD100-80A |
56 93.5 114 |
76 70 65 |
30 | 2950 |
