Products Description:
Model GDR hot water pipeline pump series parameters:
Type: Vertical single-stage
Material: casing and back cover:cast iron
Capacity: 2.5-114 m3 / h
Head: 7.5-70 meters
Power: 0.46 KW to 90 KW
Working voltage: 380V,220V, 100V, 110V, 240V and others voltage
Liquid Temperature: -15 ℃ to +120 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
Delivery: hot water,high temperature liquid and etc
Application:
1. transporting hot liquid and water.
2. Heating water, bathroom, such as water supply or drainage the boiler water
3. industrial applications, technological process of hot and cold water cycle
GDR hot water pipeline pump Product Picture:

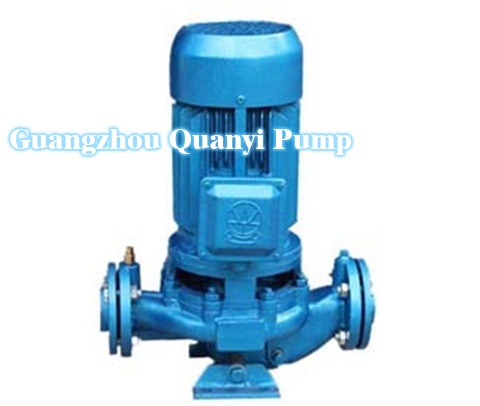

The following picture is Vertical single-stage pump with two energy-efficient motor
The following picture ishot water pipeline pump with explosion-proof motor
Product Performance Date:
| GDR hot water pipeline pump series parameters | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | Speed(r/min) |
|
GDR40-15 |
7.2 11.4 15.6 |
16 15 12 |
1.1 | 2900 |
| GDR40-20 |
7.2 11.4 15.6 |
20.5 20 18 |
1.5 | 2900 |
| GDR40-30 |
7.2 11.4 15.6 |
33 30 27.5 |
2.2 | 2900 |
| GDR40-50 |
7.2 11.4 15.6 |
53 50 48 |
4 | 2900 |
| GDR50-8 |
10.8 18 21.6 |
9.5 8 7.5 |
0.75 | 2900 |
| GDR50-17 |
10.8 18 21.6 |
18.4 17 15.6 |
1.5 | 2900 |
| GDR50-20 |
7.5 12.5 15 |
22 20 18.5 |
1.5 | 2900 |
|
GDR50-30 |
10.8 18 21.6 |
32 30 26 |
3 | 2900 |
|
GDR50-40 |
10.8 18 21.6 |
42 40 33 |
4 | 2900 |
| GDR50-50 |
10.8 18 21.6 |
52 50 42 |
5.5 | 2900 |
| GDR65-19 |
15 25 30 |
21 19 17 |
2.2 | 2900 |
| GDR65-30 |
15 25 30 |
32 30 27 |
4 | 2900 |
| GDR65-50 |
15 25 30 |
53 50 45 |
7.5 | 2900 |
| GDR65-80 |
15 25 30 |
82 80 78 |
15 | 2900 |
|
GDR80-21 |
30 42 54 |
24 21 16 |
4 | 2900 |
| GDR80-30 |
30 42 54 |
33 30 23 |
5.5 | 2900 |
| GDR80-40 |
30 42 54 |
43 40 32 |
7.5 | 2900 |
| GDR80-50 |
30 42 54 |
52 50 42 |
11 | 2900 |
| GDR80-80 |
30 50 60 |
83 80 75 |
22 | 2900 |
|
GDR100-19 |
60 90 120 |
21 19 14 |
7.5 | 2900 |
| GDR100-19A |
50 80 110 |
17 15 11.5 |
5.5 | 2900 |
| GDR100-21 |
39 60 75 |
24 21 16 |
5.5 | 2900 |
| GDR100-30 |
30 50 60 |
32 30 23 |
7.5 | 2900 |
| GDR100-32 |
60 100 120 |
35 32 28 |
15 | 2900 |
| GDR100-32A |
60 90 120 |
30 28 26 |
11 | 2900 |
| GDR100-50 |
30 50 60 |
52 50 42 |
15 | 2900 |
| GDR100-50A |
30 50 60 |
50 46 43 |
11 | 2900 |
