Products Description:
Model GDL vertical multistage centrifugal pump series parameters:
Type: Vertical multistage
Material: casing and back cover:cast iron
Capacity: 2-72 m3 / h
Head: 24-150 meters
Power: 1.1 KW to 30 KW
Working voltage: 220V or 380V
Liquid Temperature: -15 ℃ to +80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
Over loadprotector in three phase is available upon request
Delivery: clean water or liquid similar to clean water
Application:
1. water boosting, liquid boosting
2. water boosting, water supply for high building
3. industrial applications
4. The household pipe boosting, supply water pressurization, and pipe water cycle
5. Office buildings, water for construction
6. The village's water pressurization
7. pressurized water supply for the technological process
8. water supply for mountain , etc
9. cold water and hot water circulation system and etc

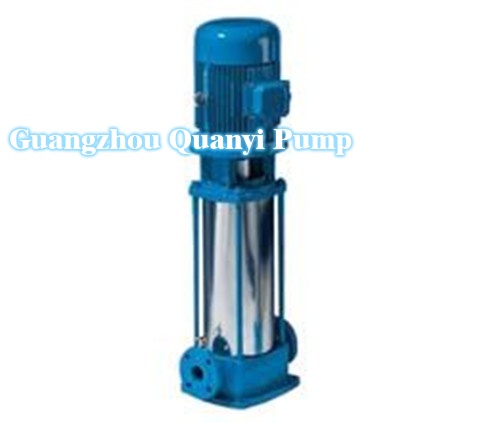

GDL vertical multistage centrifugal pump Picture:
Product Performance Date:
GDL vertical multistage centrifugal pump parameters
型号Model
流量(m³ /h)
扬程(m)
电机功率(KW)
转速(r/min)
25GDL2-12×3
2
36
1.1
2900
25GDL2-12×4
48
1.1
2900
25GDL2-12×5
60
1.5
2900
25GDL2-12×6
72
1.5
2900
25GDL2-12×7
84
2.2
2900
25GDL2-12×8
96
2.2
2900
25GDL2-12×9
108
2.2
2900
25GDL2-12×10
120
3
2900
25GDL2-12×11
132
3
2900
25GDL2-12×12
144
4
2900
25GDL4-11×3
4
33
1.1
2900
25GDL4-11×4
44
1.5
2900
25GDL4-11×5
55
2.2
2900
25GDL4-11×6
66
2.2
2900
25GDL4-11×7
77
3
2900
25GDL4-11×8
88
3
2900
25GDL4-11×9
99
3
2900
25GDL4-11×10
110
4
2900
25GDL4-11×11
121
4
2900
25GDL4-11×12
132
4
2900
25GDL4-11×13
143
5.5
2900
40GDL6-12×3
6
36
1.5
2900
40GDL6-12×4
48
2.2
2900
40GDL6-12×5
60
2.2
2900
40GDL6-12×6
72
3
2900
40GDL6-12×7
84
3
2900
40GDL6-12×8
96
4
2900
40GDL6-12×9
108
4
2900
40GDL6-12×10
120
4
2900
40GDL6-12×11
132
5.5
2900
40GDL6-12×12
144
5.5
2900
50GDL12-15×2
12
30
2.2
2900
50GDL12-15×3
45
3
2900
50GDL12-15×4
60
4
2900
50GDL12-15×5
75
5.5
2900
50GDL12-15×6
90
5.5
2900
50GDL12-15×7
105
7.5
2900
| GDL vertical multistage centrifugal pump parameters | ||||
| 型号Model | 流量(m³ /h) | 扬程(m) | 电机功率(KW) | 转速(r/min) |
| 50GDL12-15x8 | 12 | 120 | 7.5 | 2900 |
| 50GDL12-15x9 | 135 | 11 | 2900 | |
| 50GDL12-15x10 | 150 | 11 | 2900 | |
| 50GDL18-15x2 | 18 | 30 | 3 | 2900 |
| 50GDL18-15x3 | 45 | 4 | 2900 | |
| 50GDL18-15x4 | 60 | 5.5 | 2900 | |
| 50GDL18-15x5 | 75 | 7.5 | 2900 | |
| 50GDL18-15x6 | 90 | 7.5 | 2900 | |
| 50GDL18-15x7 | 105 | 11 | 2900 | |
| 50GDL18-15x8 | 120 | 11 | 2900 | |
| 50GDL18-15x9 | 135 | 15 | 2900 | |
| 50GDL18-15x10 | 150 | 15 | 2900 | |
| 65GDL24-12x2 | 24 | 24 | 3 | 2900 |
| 65GDL24-12x3 | 36 | 4 | 2900 | |
| 65GDL24-12x4 | 48 | 5.5 | 2900 | |
| 65GDL24-12x5 | 60 | 7.5 | 2900 | |
| 65GDL24-12x6 | 72 | 7.5 | 2900 | |
| 65GDL24-12x7 | 84 | 11 | 2900 | |
| 65GDL24-12x8 | 96 | 11 | 2900 | |
| 65GDL24-12x9 | 108 | 15 | 2900 | |
| 65GDL24-12x10 | 120 | 15 | 2900 | |
| 80GDL36-12x2 | 36 | 24 | 4 | 2900 |
| 80GDL36-12x3 | 36 | 5.5 | 2900 | |
| 80GDL36-12x4 | 48 | 7.5 | 2900 | |
| 80GDL36-12x5 | 60 | 11 | 2900 | |
| 80GDL36-12x6 | 72 | 11 | 2900 | |
| 80GDL36-12x7 | 84 | 15 | 2900 | |
| 80GDL36-12x8 | 96 | 15 | 2900 | |
| 80GDL36-12x9 | 108 | 18.5 | 2900 | |
| 80GDL36-12x10 | 120 | 18.5 | 2900 | |
| GDL vertical multistage centrifugal pump parameters | ||||
| 型号Model | 流量(m³ /h) | 扬程(m) | 电机功率(KW) | 转速(r/min) |
| 80GDL54-14x2 | 54 | 28 | 7.5 | 2900 |
| 80GDL54-14x3 | 42 | 11 | 2900 | |
| 80GDL54-14x4 | 56 | 15 | 2900 | |
| 80GDL54-14x5 | 70 | 18.5 | 2900 | |
| 80GDL54-14x6 | 84 | 18.5 | 2900 | |
| 80GDL54-14x7 | 98 | 22 | 2900 | |
| 100GDL72-14x2 | 72 | 28 | 11 | 2900 |
| 100GDL72-14x3 | 42 | 15 | 2900 | |
| 100GDL72-14x4 | 56 | 18.5 | 2900 | |
| 100GDL72-14x5 | 70 | 22 | 2900 | |
| 100GDL72-14x6 | 84 | 30 | 2900 | |
| 100GDL72-14x7 | 98 | 30 | 2900 | |
