GDLF stainless steel vertical multistage centrifugal pump

CONTACT US:86-020-89230513
EMAIL:3105442310@qq.com
产品介绍销售记录

  Products Description:

Model GDLF stainless steel vertical multistage centrifugal pump parameters:

Type: Vertical multistage

Material: pump casing, back cover, impeller and the pump shaft are made of 304 or 316 stainless steel

Capacity: 1-120 m3 / h

Head: 10.5-250 meters
Power: 0.37 KW to 45 KW
Working voltage:  380V or 220V and others,like 100V to 240V

Liquid Temperature: -15 ℃ to +110 ℃
The motor speed: 2900 r/min
Over loadprotector in three phase is available upon request


Application:

1. transporting clean water and light corrosive liquid.

2. water boosting system, water supply for high building

3. industrial applications

4. pressure boiler feeding

5. Office buildings, water for construction
6. pure water reating sysems,pharmaceutical and fodd water supply
7. pressurized water supply for the technological process
8. refinning chemical industries
9. washing and sprinkling and etc

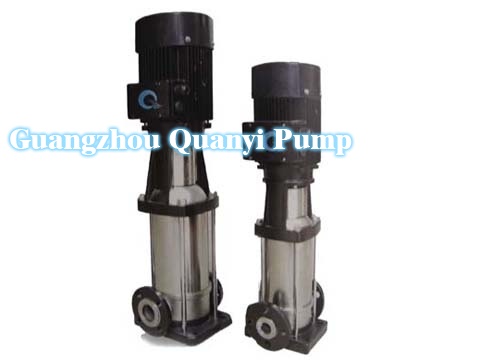

  GDLF stainless steel vertical multistage centrifugal pump Picture:





  Product Performance Date:



GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
1.0 1.5 2.0 2.5 3.0 3.5
Head (m)
25GDLF2-14 0.37 16 15.5 14 13 12.5 10.5
25GDLF2-22 0.37 24 23 22 20 19 16
25GDLF2-29 0.55 32.5 31 29.5 27.5 25.5 21
25GDLF2-37 0.55 41 39 37 34 31 26
25GDLF2-45 0.75 52 50 45 43 39 33
25GDLF2-53 0.75 60 58 53 50 45 39
25GDLF2-68 1.1 78 74 68 63 58 46
25GDLF2-83 1.1 96 91 83 80 72 57
25GDLF2-98 1.5 112 107 98 90 81 69
25GDLF2-113 1.5 130 124 113 104 93 77
25GDLF2-120 2.2 137 132 120 112 103 82
25GDLF2-128 2.2 147 140 128 119 109 87
25GDLF2-135 2.2 156 149 135 130 114 93
25GDLF2-143 2.2 163 156 143 133 119.5 97
25GDLF2-150 2.2 172 164 152 140 128 104
25GDLF2-165 2.2 185 173 165 150 140 112
25GDLF2-173 3.0 198 188 173 161 147 117
25GDLF2-180 3.0 206 196 180 168 154 123
25GDLF2-195 3.0 218 203 195 176 165 135

GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
1.2 1.6 2.0 2.4 2.8 3.0 3.2 3.6 4.0
Head(m)
32GDLF3-9.5 0.37 12 11.5 11 10.5 10 9.5 9 7.5 6
32GDLF3-14 0.37 18 17 16.5 15.5 15 14 13 11 9
32GDLF3-18.5 0.37 24.5 23 22.5 21 20 18.5 17 15 12
32GDLF3-23 0.37 30 29 28 26.5 25 23 21 19 15
32GDLF3-28 0.55 37 35 34 32 30 28 26 23 18
32GDLF3-33 0.55 43 41.5 40 37 35 33 31 27 21
32GDLF3-38 0.75 49 47.5 46 42.5 40 38 36 31 25
32GDLF3-43 0.75 55 53 51.5 48 45 43 41 35 28
32GDLF3-47 0.75 61 59 56.5 53 50 47 44 38 31
32GDLF3-52 1.1 67 64.5 62 58 55 52 48 42 34
32GDLF3-57 1.1 73 70 68 63.5 60 57 53 46 37
32GDLF3-62 1.1 79 76 74 69 65 62 58 50 40
32GDLF3-71 1.1 92 88 86 80 75 71 67 58 46
32GDLF3-81 1.5 103 100 97 90 85 81 76 65 52
32GDLF3-90 1.5 116 112 108 101 95 90 85 73 58
32GDLF3-100 2.2 128 124 120 112 105 100 94 81 65
32GDLF3-110 2.2 140 135 131 122 115 110 103 89 71
32GDLF3-120 2.2 152 147 142 133 125 120 111 97 77
32GDLF3-129 2.2 165 159 154 144 135 129 120 105 84


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
2 3 4 5 6 7 8
Head(m)
32GDLF4-15
 0.37 18
 17
 15
 13 10 8 5
32GDL4-24 0.55 27 26 24 20 18 13 9
32GDLF4-32 0.75 36 34 32 27 24 19 12
32GDLF4-40 1.1 45 43 40 34 31 23 15
32GDLF4-48 1.1 54 51 48 42 36 27 17
32GDLF4-56 1.5 63 60 56 48 42 32 20
32GDLF4-64 1.5 72 68 64 54 49 37 24
32GDLF4-80 2.2 90 86 80 70 60 47 30
32GDLF4-96 2.2 108 102 96 85 71 56 36
32GDLF4-104 2.2 117 112 104 87 79 60 39
32GDLF4-112 2.2 126 120 112 100 85 65 42
32GDLF4-120 3.0 135 128 120 107 91 70 45
32GDLF4-128 3.0 144 137 128 115 98 76 48
32GDLF4-136 4.0 153 145 136 122 104 80 51
32GDLF4-144 4.0 162 154 144 129 110 84 54
32GDLF4-152 4.0 171 165 152 136 116 90 57
32GDLF4-160 4.0 180 173 160 143 122 94 60
32GDLF4-168 4.0 188 181 168 150 128 98 63
32GDLF4-176 4.0 196 189 176 158 134 103 66
32GDLF4-210 5.5 235 225 210 193 172 139 105


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
3 4 5 6 7 8
Head(m)
32GDLF5-9 0.37 11 10 9 7 4 2
32GDLF5-15 0.55 17 16 15 11 8 4
32GDLF5-20 0.55 24 22 20 16 12 7
32GDLF5-25 0.75 30 28 25 21 16 11
32GDLF5-30.5 1.1 36 34 30.5 26 21 16
32GDLF5-36 1.1 42 40 36 31 26 20
32GDLF5-42 1.1 49 47 42 37 31 24
32GDLF5-48 1.5 56 53 48 42 36 28
32GDLF5-54 1.5 64 59 54 48 40 32
32GDLF5-60 2.2 70 65 60 53 44 35
32GDLF5-66 2.2 75 71 66 58 48 38
32GDLF5-71.5 2.2 81 77 71.5 63 52 41
32GDLF5-77 2.2 88 83 77 68 56 44
32GDLF5-82 2.2 95 89 82 73 60 47
32GDLF5-87 2.2 101 95 87 78 64 50
32GDLF5-98 3.0 115 107 98 88 72 57
32GDLF5-109 3.0 128 120 109 98 80 64
32GDLF5-120 4.0 141 132 120 108 90 71
32GDLF5-131 4.0 155 144 131 118 100 78
32GDLF5-142 4.0 168 156 142 128 110 85


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
5 6 7 8 9 10 11 12
Head(m)
40GDLF8-18 0.75 20
 19.5 19
 18
 17
 16 14 13
40GDLF8-27 1.1 30 29.5 28.5 27 25 24 21 19
40GDLF8-36 1.5 41 39.5 38 36 34 32 28 26
40GDLF8-45 2.2 52 50 48 45 42 40 36 32
40GDLF8-54 2.2 62 60 57 54 51 48 43 39
40GDLF8-65 3.0 72 70 68 65 61 57 51 46
40GDLF8-73 3.0 83 80 77 73 69 65 58 52
40GDLF8-84 4.0 93 90.5 87 84 78 73 66 59.5
40GDLF8-92 4.0 104 100 97 92 87 81 73 65
40GDLF8-102 4.0 113 110 107 102 96 89 80 73
40GDLF8-111 4.0 124 120 116 111 104 92 87 78
40GDLF8-121 5.5 134 130.5 126 121 113 105 95 86
40GDLF8-130 5.5 145 141 136 130 122 113 102 92
40GDLF8-140 5.5 154.5 150 145.5 140 131 121.5 110 99
40GDLF8-148 5.5 166 161 156 148 139 130 118 106
40GDLF8-158 7.5 175 170 165 158 148 138 124 112
40GDLF8-167 7.5 187 182 175 167 157 146 134 120
40GDLF8-177 7.5 196 191 184 177 165 154 139 126
40GDLF8-186 7.5 208 202 195 186 175 163 150 135


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
5 6 7 8 9 10 11 12 13
Head(m)
40GDLF10-16 0.75 20 19.5 19 18 17 16 14 13 10
40GDLF10-24 1.1 30 29.5 28.5 27 25 24 21 19 15
40GDLF10-32 1.5 41 39.5 38 36 34 32 28 26 22
40GDLF10-40 2.2 52 50 48 45 42 40 36 32 28
40GDLF10-48 2.2 62 60 57 54 51 48 43 39 34
40GDLF10-57 3.0 72 70 68 65 61 57 51 46 40
40GDLF10-65 3.0 83 80 77 73 69 65 58 52 45
40GDLF10-73 3.0 93 90.5 87 84 78 73 66 60 51
40GDLF10-81 4.0 104 100 97 92 87 81 73 65 58
40GDLF10-92 4.0 124 120 116 111 104 92 87 78 70
40GDLF10-113 5.5 145 141 136 130 122 113 102 92 81
40GDLF10-130 5.5 166 161 156 148 139 130 118 103 93
40GDLF10-146 7.5 187 182 175 167 157 146 134 120 108
40GDLF10-163 7.5 208 202 195 186 175 163 150 135 119


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
7
 8 9 10 11 12 13 14 15 16
Head(m)
40GDLF12-20 1.5 23.5 23 22.5 22 21 20 18.5 17 15.5 14
40GDLF12-30 2.2 35.5 35 34 33 31.5 30 28 26 23.5 21
40GDLF12-40 3.0 47 46 45 44 42 40 37 34 31 28
40GDLF12-50 3.0 59.5 58 56.5 55 52.5 50 46.5 43 39 35
40GDLF12-60 4.0 71.5 70 68 66 63 60 56 52 47 42
40GDLF12-70 5.5 83.5 82 79.5 77 73.5 70 65.5 61 55 49
40GDLF12-80 5.5 95.5 94 91 88 84 80 75 70 63 56
40GDLF12-91 5.5 108 106 103 100 95.5 91 85 79 71.5 64
40GDLF12-101 7.5 120 118 114.5 111 106 101 94.5 88 80 72
40GDLF12-120 7.5 143.5 141 137 133 127 121 113.5 106 96 86
40GDLF12-140 11 168 165 160 155 148 141 132.5 124 112 100
40GDLF12-162 11 192.5 189 183.5 178 170 160 152 142 128 115
40GDLF12-183 11 217 213 207 202 193 183 171 160 145 130


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
8 10 12 14 16 18 20 22
Head(m)
50GDLF16-22 2.2 26 26 25 24 22 21.5 19 16.5
50GDLF16-34 3.0 40 39 37.5 36 34.5 31.5 30 25.5
50GDLF16-46 4.0 54 53 50 49 46.5 42 39 34.5
50GDLF16-57 4.0 68 66 63 61 57.5 53 49 44
50GDLF16-70 5.5 81 80 77 73 70 64 59 52
50GDLF16-80 5.5 95 93 90 85 80.5 75 69 60
50GDLF16-93 7.5 109 106 102 98 93 87 79 70
50GDLF16-104 7.5 123 119 116 111 104 98 89 78
50GDLF16-118 11 137 133 130 124 118 110 100 89
50GDLF16-129 11 150 147 143 136 129 121 110 97
50GDLF16-140 11 163 160 156 148 140 131 120 105
50GDLF16-151 11 176 173 168 160 151 141 129 113
50GDLF16-162 11 190 186 180 172 162 151 138 122
50GDLF16-173 15 204 199 192 184 173 161 147 131
50GDLF16-184 15 217 212 204 196 184 172 156 140


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
10
 12 14 16 18 20 22 24 26 28
Head(m)
50GDLF20-11 1.1 13.5 13 12.5 12 11 11.5 9 8 7 6
50GDLF20-23 2.2 27 26.5 26 25 24 23 22 20 18 15
50GDLF20-35 4.0 40 39.5 39 38 37 35 33 30 27 24
50GDLF20-47 5.5 54 53 52 51 49 47 44 41 37 33
50GDLF20-58 5.5 67 66 64 62 60 58 55 50 45 40
50GDLF20-70 7.5 81 79 77 75 73 70 66 61 55 49
50GDLF20-82 7.5 95 93 91 89 86 82 77 71 65 58
50GDLF20-94 11 109 107 105 102 99 94 89 82 75 67
50GDLF20-118 11 136 134 131 128 124 118 111 103 95 85
50GDLF20-142 15 164 162 158 154 149 142 133 124 114 102
50GDLF20-166 15 192 189 185 180 174 166 156 145 133 119
50GDLF20-202 18.5 234 230 225 210 212 202 190 177 162 145


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
16 20 24 28 32 34 40
Head(m)
65GDLF32-13 1.5 15
 14
 13 11.5
 9.5 7
 4
65GDLF32-13 2.2 18 17 15 14 13 11 8
65GDLF32-20 3.0 30 29 27 25 22 18 14
65GDLF32-27 4.0 36 34 32 30 27 23 18
65GDLF32-33 5.5 47 44 43 38 33 28 22
65GDLF32-40 5.5 54 51 48 45 40 36 27
65GDLF32-46 7.5 66 63 58 53 46 40 32
65GDLF32-54 7.5 72 68 64 60 54 48 36
65GDLF32-60 9.2 84 80 75 70 60 52 42
65GDLF32-68 9.2 90 85 80 75 68 60 48
65GDLF32-75 11 102 97 91 85 75 66 53
65GDLF32-82 11 108 102 96 90 84 72 58
65GDLF32-89 15 120 114 107 100 89 78 61
65GDLF32-96 15 126 119 112 105 96 84 68
65GDLF32-103 15 138 131 123 115 103 90 72
65GDLF32-110 15 144 136 128 120 110 96 78
65GDLF32-118 18.5 155 148 139 130 118 102 83
65GDLF32-124 18.5 162 155 146 136 124 108 89
65GDLF32-132 18.5 174 165 155 145 132 114 92
65GDLF32-138 18.5 180 170 160 150 138 120 100
65GDLF32-146 22 192 182 171 160 146 126 105
65GDLF32-153 22 198 187 176 165 153 135 110
65GDLF32-160 22 210 199 187 175 160 138 115
65GDLF32-168 22 216 204 192 180 168 147 120
65GDLF32-174 30 228 216 203 190 174 153 125
65GDLF32-182 30 234 221 208 195 182 158 130
65GDLF32-190 30 246
 233 219 205 190 162 135
65GDLF32-196 30 252 238 224 210 196 170 142


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
25 30 35 40 45 50 55
Head(m)
80GDLF45-16
 3.0 20
 19.5
 18
 16
 15
 14
 12
80GDLF45-17.5 4.0 22 21 20 19 17.5 16 14
80GDLF45-30 5.5 40 38.5 36 32 30 28 24
80GDLF45-39 7.5 48 46 44 42 39 34 31
80GDLF45-52 11 64 61.5 58 55 52.5 49 43
80GDLF45-58 11 71 69 66 63 58 53 47
80GDLF45-71 15 88 84.5 80 76 71 65 58
80GDLF45-77 15 95 92 88 84 77 71 63
80GDLF45-90 18.5 111 107.5 102 96.5 90 84 74
80GDLF45-97 18.5 119 115 110 105 97 88 78
80GDLF45-110 22 134 130 124 118 110 102 90
80GDLF45-116 22 143 138 132 125 115 106 93
80GDLF45-130 30 159 153 146 139 130 119 106
80GDLF45-135 30 168 161 154 146 134 123 109
80GDLF45-148 30 183 176 168 159 148 137.5 122
80GDLF45-154 30 190 184 176 167 153 140 124
80GDLF45-167 30 208 199 190 180 167 154.5 138
80GDLF45-171 37 216 206 197.5 189 171 158 145
80GDLF45-186 37 231 222 212 201 186 172 154
80GDLF45-189 37 240 231 221 210 189 176 160
80GDLF45-205 45 256 244.5 234 224 205 189.5 172
80GDLF45-209 45 265 263 243 231 209 192 176
80GDLF45-223 45 280 268.5 256 244 223 207 187
80GDLF45-228 45 288 276 264 252 228 210 192
80GDLF45-242 45 305 291.5 279 256 242 224 203


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
30 40 50 60 70 80
Head(m)
100GDLF60-14
 4.0
 19 18 16
 14
 12
 9
100GDLF60-21.5 5.5 26 25 23 21.5 19 16
100GDLF60-30 7.5 40 38 34 30 28 19
100GDLF60-38 11 47 45 41.5 38 32 26
100GDLF60-46 11 55 52 49 46 39 34
100GDLF60-53 15 67 64 57 53 45 35
100GDLF60-58 15 73 69 65 58 52 43
100GDLF60-65 18.5 80 76 72 65 60 50
100GDLF60-72 18.5 92 87 81 72 64 54
100GDLF60-80 22 100 94 88 80 72 59
100GDLF60-86 22 107 101 95 86 80 68
100GDLF60-97 30 121 114 105 97 85 70
100GDLF60-104 30 128 121 112 104 93 78
100GDLF60-112 30 136 129 119 112 100 84
100GDLF60-122 30 150 143 132 122 107 89
100GDLF60-129 37 157 149 140 129 114 95
100GDLF60-132 37 164 156 145 132 121 104
100GDLF60-145 37 180 172 162 145 130 108
100GDLF60-153 37 187 180 165 153 135 115
100GDLF60-160 45 193 183 175 160 143 122
100GDLF60-170 45 208 198 185 170 152 130
100GDLF60-178 45 217 207 194 178 158 135


GDLF multistage centrifugal pump parameters
Model Power
(KW) 		Capacity(m3 /h)
50 60 70 80 90 100 110 120
Head(m)
100GDLF90-14
 5.5
 20.5
 19
 17.5
 15.5
 14
 10 8
100GDLF90-21 7.5 28.5 26.5 25 22 19 17 14 12
100GDLF90-28 11 41 38 34 31 28 20 17.5 10
100GDLF90-42 15 56 53 50 47 42 38 34 28
100GDLF90-48 18.5 69 65 59 54.5 48.5 40 35 26.5
100GDLF90-63 22 84 79.5 75 70.5 63 57 51 43.5
100GDLF90-70 30 97 91 84 78 70 58 51.5 41
100GDLF90-84 30 112 106 101 94 84 78 68 58
100GDLF90-91 37 125 117.5 109 101.5 91 77 68.5 56
100GDLF90-107 37 141 134 127 118 107 97 84 72
100GDLF90-112 45 153 144 135 125 112 100 85.5 69
100GDLF90-130 45 171 163 152 144 130 119 106 87




    产品咨询
    内容:
    验证码:
    Stainless Steel Pump Submersible sewage pump Pipeline pump
