Products Description:
Model SS type stainless steel deep well centrifugal pump series parameters:
Capacity: 0.9-2.6m3 / h
Head: 22-36 meters
Motor protection grade: IP55/IP54
Power: 0.75 KW , 0.9 KW
Working voltage: 220V or 380V, the voltage can be customized
High Suction Head: 30meters
Liquid Temperature: -15 ℃ to + 80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
The maximum working pressure: 8 bar
The pump can be used at full head without overloading motor, and can be connected with threaded tube or hose
Material: pump casing, back cover, impeller and the pump shaft are made of 304 stainless steel
Application:
1. deep well water supply
2. domestic water
3. irrigation
4. water supply , domestic water supplying
5. high suction draw water
6. supply for families, factories, shopping malls

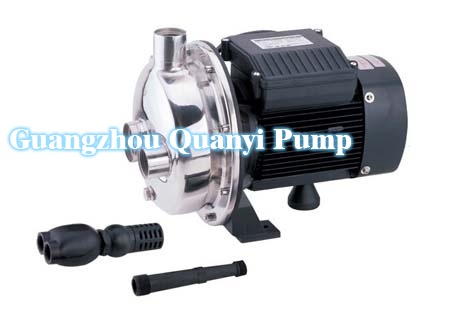

Product Picture:
Product Performance Date:
| SS type stainless steel deep well centrifugal pump | |||||||||
| Model | Power | Head (meter) | suction Head(meter) | 6 | 10 | 15 | 20 | 26 | 30 |
| SS075 | 750W | 22 | Capacity(L/min) | 35 | 31 | 27 | 22 | 15 | - |
| 32 | 27 | 24 | 20 | 15 | 10 | - | |||
| 36 | 16 | 13 | 10 | 8 | 5 | - | |||
| SS type stainless steel deep well centrifugal pump | |||||||||
| Model | Power | Head (meter) | Suction Head(meter) | 6 | 10 | 15 | 20 | 26 | 30 |
| SS090 | 900W | 22 | Capacity(L/min) | 44 | 39 | 35 | 30 | 24 | 15 |
| 32 | 36 | 32 | 28 | 20 | 15 | 5 | |||
| 36 | 25 | 19 | 15 | 12 | 5 | - | |||
