Products Description:
Model 2BC type water ring vacuum pump series parameters:
Material: foundary iron, or stainless steel
Minimum suction absolute pressure: 3.3Kpa
Maximal inspiratory capacity is 27-500m³/h
Working fluid volume 0.2-1.2m³/h
Application:
1. Pharmaceuticals, plastics, degassing of liquid
2. water supply company, vacuum water
3. chemical, textileand and etc

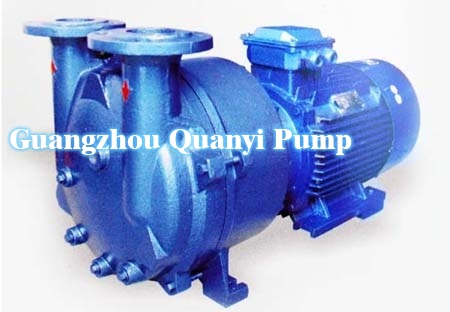

2BC type water ring vacuum pump Product Picture:
Product Performance Date:
| 2BC type water ring vacuum pump | ||||||
| Model |
Power (kW) |
Minimum suction absolute pressure (kPa) |
Maximal inspiratory capacity (m3/h) |
Working fluid volume (m3/h) |
Speed (r／min) |
dB(A) |
| 2BC-27 | 1.1 | 3.3 |
27 |
0.2 |
2900 |
62 |
| 2BC-52 | 1.5 | 3.3 | 52 | 0.2 | 2900 | 65 |
| 2BC-80 | 3 | 3.3 | 80 | 0.3 | 2900 | 66 |
| 2BC-110 | 4 | 3.3 | 110 | 0.4 | 2900 | 72 |
| 2BC-160 | 4 | 3.3 | 160 | 0.4 | 1450 | 65 |
| 2BC-230 | 5.5 | 3.3 | 230 | 0.5 | 1450 | 68 |
| 2BC-280 | 7.5 | 3.3 | 280 | 0.6 | 1450 | 70 |
| 2BC-400 | 11 | 3.3 | 400 | 0.9 | 1450 | 73 |
| 2BC-500 | 15 | 3.3 | 500 | 1.2 | 980 | 75 |
