Products Description:
Model 2BE1 liquid ring vacuum pump series parameters:
Material: foundary iron, or stainless steel
Vacuum gas : 2.77-96.6m³/h
Motor power: 7.5-250KW
ultimate vacuum 3.3Kpa
Application:
1. vacuum dehydration
2. vacuum drying
3. vacuum filter
4. suction drainage engineering and etc

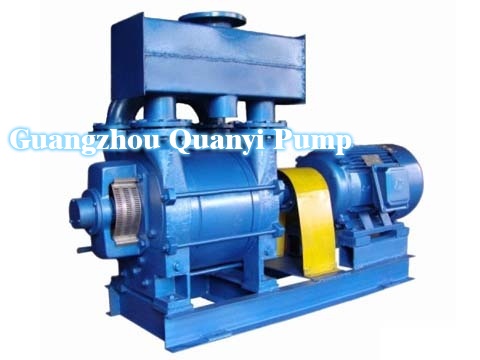

2BE1 liquid ring vacuum pump Product Picture:
Product Performance Date:
|
2BE1 liquid ring vacuum pump |
|||||||
| Model | different vacuum gas(m³/min) | Speed(r/min) | Power(KW) | caliber(mm) | |||
| 6KPa | 10Kpa | 20Kpa | 40Kpa | ||||
|
2BE1 102-0 |
2.77 | 3.2 | 3.38 | 3.43 | 1300 | 7.5 | 65 |
| 3.15 | 3.58 | 3.87 |
3.83 |
1450 | 7.5 | 65 | |
| 4.25 | 4.53 | 4.68 | 4.77 | 1750 | 11 | 65 | |
|
2BE1 152-0 |
4.96 | 5.65 | 6.44 | 6.56 | 1300 | 15 | 100 |
| 5.50 | 6.40 | 7.20 | 7.30 | 1450 | 15 | 100 | |
| 7.08 | 7.88 | 8.75 | 8.80 | 1750 | 18.5 | 100 | |
| 2BE1 202-0 | 9.18 | 10.33 | 11.12 | 11.02 | 880 | 18.5 | 125 |
| 10.98 | 11.87 | 12.57 | 12.35 | 980 | 22 | 125 | |
| 13.6 | 14.15 | 14.67 | 14.38 | 1170 | 30 | 125 | |
| 2BE1 203-0 | 11.6 | 13.6 | 14.6 | 14.7 | 790 | 30 | 125 |
| 16.4 | 17.7 | 18.7 | 18.4 | 980 | 37 | 125 | |
| 22.1 | 22.7 | 23.4 | 22.9 | 1300 | 55 | 125 | |
| 2BE1 252-0 | 19.92 | 21.95 | 24.28 | 24.55 | 660 | 37 | 150 |
| 24.07 | 25.82 | 27.68 | 27.73 | 740 | 45 | 150 | |
| 29.83 | 31.28 | 33.05 | 32.73 | 880 | 75 | 150 | |
| 2BE1 253-0 | 20.0 | 23.8 | 28.3 | 28.8 | 565 | 45 | 150 |
| 34.8 | 36.8 | 40.2 | 39.6 | 740 | 75 | 150 | |
| 45.1 | 47.0 | 49.6 | 48.7 | 920 | 110 |
150 |
|
| 2BE1 303-0 | 35.4 | 39.4 | 43.0 | 42.2 |
472 |
75 | 200 |
| 50.2 | 52.1 | 53.3 | 52.0 |
590 |
75 |
200 |
|
| 62.1 | 65.2 | 66.3 | 64.6 | 740 | 110 |
200 |
|
| 2BE1 353-0 | 39.2 | 48.6 | 56.0 | 57.2 | 372 | 75 | 250 |
| 69.0 | 71.6 | 73.1 | 71.0 | 490 | 110 |
250 |
|
| 90.2 | 96.2 | 98.0 | 96.6 | 660 | 185 | 250 | |
