Products Description:
Model G type single screw pump series parameters:
Capacity: 0.8-45 m3 / h
Head: 60 meters, 120meters
Power: 0.75 KW to 11 KW
Motor Speed: 500-960r/min
Working voltage: 220V or 380V
Material: foundry iron/ stainless steel optional
Delivery: high-viscosity liquid delivery, liquid feed containing the hard particles and fibers suspended
Application:
1. high viscosity liquid, chemical, pharmaceutical
2. diesel oil, transportation, water and other medium
3. Medicine, daily chemical, all kinds of viscous slurry, emulsion, all kinds of ointment cosmetics transport
4. All kinds of viscous oil, starch, honey, sugar, butter, cream, minced meat
5. various of suspensions, grease,paste, adhesives
6. environmental protect project
Attention: Some chemical raw materials was limited by the temperature and the concentration, if there's any question, can inquiry customer service.

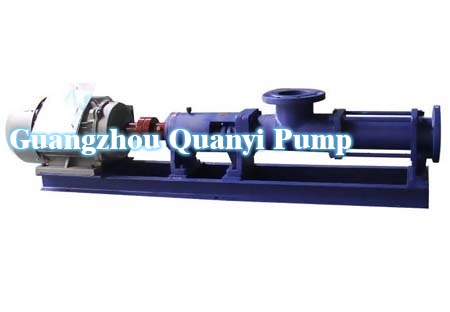

G type single screw pump Product Picture:
Product Performance Date:
| Model |
Speed r/min |
Capacity m³/h |
Head m |
Pressure Mpa |
Power KW |
Input mm |
Output mm |
Allow particles Pass (mm) | All Fiber Pass (mm) |
| G20-1 | 960 | 0.8 | 60 | 0.6 | 0.75 | 25 | 25 | 1.5 | 25 |
| G25-1 | 960 | 2 | 60 | 0.6 | 1.5 | 32 | 25 | 2 | 30 |
| G25-2 | 960 | 2 | 120 | 1.2 | 2.2 | 32 | 25 | 2 | 30 |
| G30-1 | 960 | 5 | 60 | 0.6 | 2.2 | 50 | 40 | 2.5 | 35 |
| G30-2 | 960 | 5 | 120 | 1.2 | 3 | 50 | 40 | 2.5 | 35 |
| G35-1 | 960 | 8 | 60 | 0.6 | 3 | 65 | 50 | 3 | 40 |
| G35-2 | 960 | 8 | 120 | 1.2 | 4 | 65 | 50 | 3 | 40 |
| G40-1 | 960 | 12 | 60 | 0.6 | 4 | 80 | 65 | 3.8 | 45 |
| G40-2 | 960 | 12 | 120 | 1.2 | 5.5 | 80 | 65 | 3.8 | 45 |
| G50-1 | 960 | 20 | 60 | 0.6 | 5.5 | 100 | 80 | 5 | 50 |
| G50-2 | 960 | 20 | 120 | 1.2 | 7.5 | 100 | 80 | 5 | 50 |
| G60-1 | 960 | 30 | 60 | 0.6 | 11 | 125 | 100 | 6 | 60 |
| G60-2 | 720 | 30 | 120 | 1.2 | 11.8 | 125 | 100 | 6 | 60 |
| G70-1 | 720 | 45 | 60 | 0.6 | 11.8 | 150 | 125 | 8 | 70 |
