Products Description:
Model WQG type stainless steel submersible swage pump series parameters:
Material: 304/316/316L stainless steel
Capacity: 6-1700 m3 / h
Head: 7-40 meters
Power: 0.55 KW to 160KW
caliber: ≥25mm
Speed: 2900 r/min or 1450 r/min
Working voltage: 220V or 380V, and the voltage can be customized
Delivery: chemical sewage, industrial seage, waste water and dirty water drainge and etc
Application:
1. chemical industry, medicine, environmental protection
2. acid and alkali wastewater
3. sea water lift suction,bleach disinfection pool
4. corrosive liquid, sewage treatment
5. acid and alkali corrosive liquid booster
Attention: Some chemical raw materials was limited by the temperature and the concentration, if there's any question, can inquiry customer service.

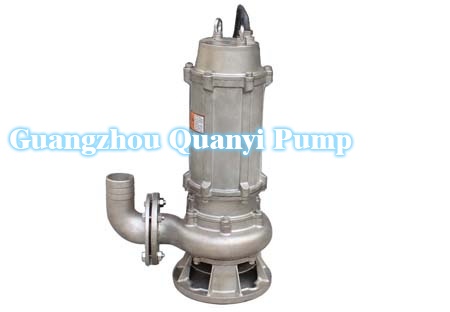

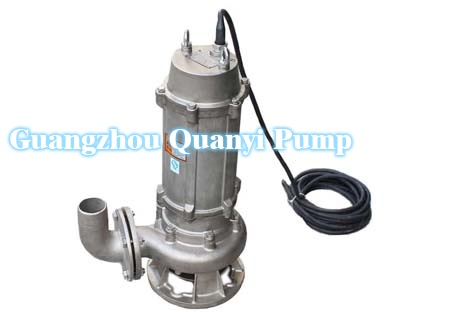

WQG type stainless steel submersible swage pump Product Picture:
Product Performance Date:
| stainless steel submersible swage pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | caliber(mm) |
| WQG 7-7-0.55 | 7 | 7 | 0.55 | 50 |
| WQG 9-22-2.2 | 9 | 22 | 2.2 | 50 |
| WQG 10-10-0.75 | 10 | 10 | 0.75 | 50 |
| WQG 10-15-1.1 | 10 | 15 | 1.1 | 50 |
| WQG 12-25-3 | 12 | 25 | 3 | 50 |
| WQG 13-10-1.1 | 13 | 10 | 1.1 | 50 |
| WQG 15-10-1.1 | 15 | 10 | 1.1 | 50 |
| WQG 15-15-1.5 | 15 | 15 | 1.5 | 50 |
| WQG 15-20-2.2 | 15 | 20 | 2.2 | 50 |
| WQG 15-30-4 | 15 | 30 | 4 | 50 |
| WQG 18-10-1.5 | 18 | 10 | 1.5 | 50 |
| WQG 20-15-2.2 | 20 | 15 | 2.2 | 50 |
| WQG 20-40-7.5 | 20 | 40 | 7.5 | 50 |
| WQG 25-8-1.5 |
25 |
8 | 1.5 | 50 |
| WQG 25-10-2.2 | 25 | 10 | 2.2 | 50 |
| WQG 25-15-2.2 | 25 | 15 | 2.2 | 50 |
| WQG 24-20-4 | 24 | 20 | 4 | 50 |
| WQG 25-22-4 |
25 |
22 | 4 | 50 |
| WQG 25-30-5.5 | 25 | 30 | 5.5 | 50 |
| WQG 27-13-2.2 | 27 | 13 | 2.2 | 50 |
| WQG 30-6-1.5 | 30 | 6 | 1.5 | 50 |
| WQG 30-20-4 | 30 | 20 | 4 | 50 |
| WQG 30-25-5.5 | 30 | 25 | 5.5 | 50 |
| stainless steel submersible swage pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | caliber(mm) |
| WQG 30-10-2.2 | 30 | 10 | 2.2 | 80 |
| WQG 30-14-3 | 30 | 14 | 3 | 80 |
| WQG 35-7-2.2 | 35 | 7 | 2.2 | 80 |
| WQG 37-10-3 | 37 | 10 | 3 | 80 |
| WQG 42-9-2.2 | 42 | 9 | 2.2 | 80 |
| WQG 42-12-3 | 42 | 12 | 3 | 80 |
| WQG 40-15-4 | 40 | 15 | 4 | 80 |
| WQG 40-25-7.5 | 40 | 25 | 7.5 | 80 |
| WQG 50-10-3 | 50 | 10 | 3 | 80 |
| WQG 50-22-7.5 | 50 | 22 | 7.5 | 80 |
| WQG 60-13-4 | 60 | 13 | 4 | 80 |
| stainless steel submersible swage pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | caliber(mm) |
| WQG 45-15-5.5 | 45 | 15 | 5.5 | 100 |
| WQG 50-17-5.5 | 50 | 17 | 5.5 | 100 |
| WQG 65-15-5.5 | 65 | 15 | 5.5 | 100 |
| WQG 70-7-3 | 70 | 7 | 3 | 100 |
| WQG 70-10-4 | 70 | 10 | 4 | 100 |
| WQG 70-15-7.5 | 70 | 15 | 7.5 | 100 |
| WQG 80-13-7.5 | 80 | 13 | 7.5 | 100 |
| WQG 90-6-4 | 90 | 6 | 4 | 100 |
| WQG 100-7-4 | 100 | 7 | 4 | 100 |
| WQG 100-10-5.5 | 100 | 10 | 5.5 | 100 |
| WQG 100-15-7.5 | 100 | 15 | 7.5 | 100 |
| WQG 140-7-5.5 | 140 | 7 | 5.5 | 150 |
| WQG 145-10-7.5 | 145 | 10 | 7.5 | 150 |
| WQG 210-7-7.5 | 210 | 7 | 7.5 | 150 |
| WQG300-10-18.5 | 300 | 10 | 18.5 | 150 |
| WQG300-18-30 | 300 | 18 | 30 |
150 |
