WQ small submersible pump for clean water booster CONTACT US:86-020-89230513
EMAIL:3105442310@qq.com |
产品介绍销售记录
Products Description:
Model WQ small submersible pump series parameters:
Casing Material: stainless steel
Capacity: 5-16 m3 / h
Head: 5-10 meters
Power: 0.18 KW to 1.1KW
caliber: 32-50mm
Speed: 2900 r/min
Working voltage: 220V or 380V, and the voltage can be customized
Delivery: clean water, light corrosive liquid
Application:
1. river water,pond water, water booster
2. clean water booster
3. commercial water booster
4. construction building water delivery
5. agriculture or fisheries aquaculture
6. water supply and etc

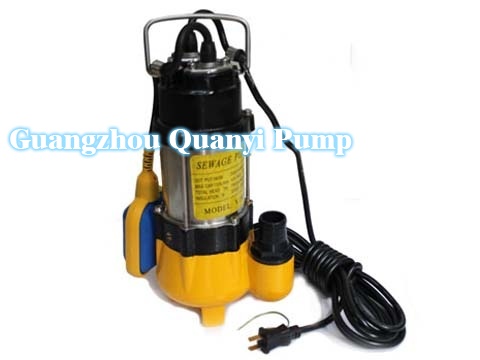

WQ small submersible pump product picture:
Product Performance Date:
| WQ small submersible pump | |||||
| Model |
Rated Capacity (m³ /h) |
Rate Head(m) | Power(KW) | Outlet(mm) | Packing Size(cm) |
| WQ5-5-0.18 | 5 | 5 | 0.18 | 40,32 |
18.5×18.0×39.0 |
|
WQ5-5-0.18F |
5 | 5 | 0.18 | 40,32 |
18.5×18.0×39.0 |
| WQ5-7-0.37 | 5 | 7 | 0.37 | 50,40 |
25.5×19.5×49.5 |
|
WQ5-7-0.37F |
5 | 7 | 0.37 | 50,40 |
25.5×19.5×49.5 |
| WQ10-10-0.75 | 10 | 10 | 0.75 | 50,40 |
25.5×19.5×53.0 |
|
WQ10-10-0.75F |
10 | 10 | 0.75 |
50,40 |
25.5×19.5×53.0 |
| WQ16-5-1.1 | 16 | 5 | 1.1 |
50,40 |
27.5×21.5×55.0 |
|
WQ16-5-1.1F |
16 | 5 | 1.1 |
50,40 |
27.5×21.5×55.0 |
