Products Description:
Model FB centrifugal pump series parameters:
Capacity: 0.9-350 m3 / h
Head: 8-50meters
Power: 0.12 KW to 22KW
Working voltage: 220V or 380V
Liquid Temperature: FB≤ 90 ℃,FBX≤ 110 ℃
The motor speed: 2900 r/min
Material: pump casing, back cover, impeller and the pump shaft are made of 304 or 316 stainless steel
Performance: corrosion resistant, acidresistant, alkali resistant
Application:
1. Environmental protection, chemical, pharmaceutical
2. Electroplating, deeing, sewage process
3. Food,beverage
4. Acid, alkali liquid, Organic solvent and inorganic solvents liquid
Attention: Some chemical raw materials was limited by the temperature and the concentration, if there's any question, can inquiry customer service.

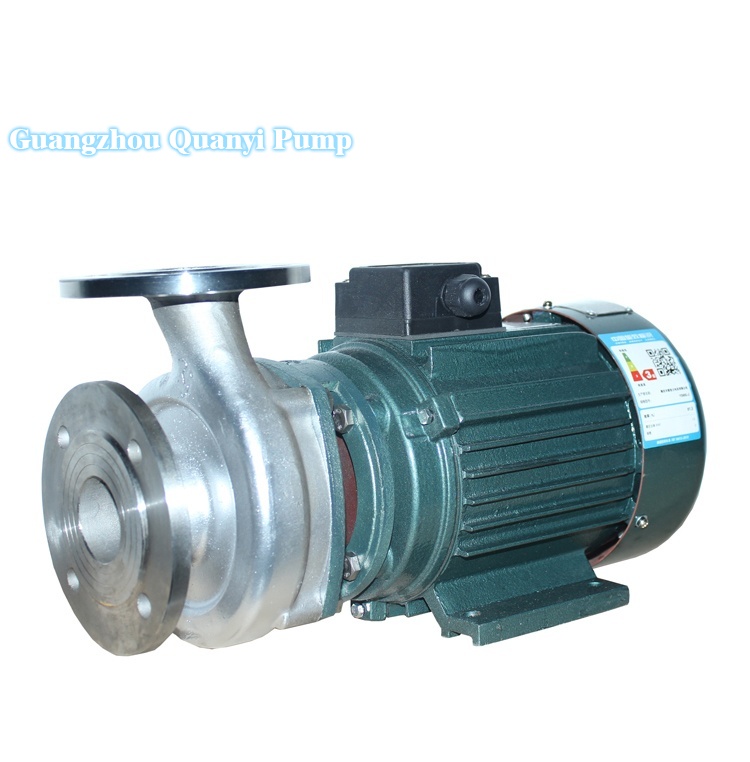

Product Picture:
Product Performance Date:
| FBX self-priming stainless steel chemical corrosion resistant pump | |||||
| Model |
Capacity (m³ /h) |
Head (m) |
Power (KW) |
Input Caliber (mm) |
Output Caliber (mm) |
|
25FB-8 25FB-8D |
0.7 2.5 4 |
11 10 8 |
0.25 | 25 | 20 |
|
40FB-13 40FB-13D |
2.5 4.5 5.3 |
16 15 14 |
0.55 | 40 | 25 |
|
40FB-13-A 40FB-13D-A |
2.5 4.5 5.3 |
16 15 14 |
0.75 | 40 | 25 |
|
40FB-13T 40FB-13-DT |
2.5 4.5 5.3 |
16 15 14 |
0.55 | 40 | 25 |
|
40FB-13T-A 40FB-13DT-A |
2.5 4.5 5.3 |
16 15 14 |
0.75 | 40 | 25 |
|
50FB-18 50FB-18D |
1.5 4.3 9 |
23 22 20 |
1.5 | 50 | 40 |
|
50FB-18-A 50FB-18D-A |
17.5 20 21 |
14 12 10 |
2.2 | 50 | 40 |
|
50FB-18T 50FB-18DT |
1.5 4.3 9 |
23 22 20 |
1.5 | 50 | 40 |
|
50FB-18T-A 50FB-18DT-A |
17.5 20 21 |
14 12 10 |
2.2 | 50 | 40 |
|
50FB-22 50FB-22T |
7 10 16 |
27 26 24 |
2.2 | 50 | 40 |
|
50FB-22-A 50FB-22T-A |
24 26 27 |
18 16 14 |
3 | 50 | 40 |
|
50FB-23T 50FB-23DT |
7 8 9 |
26 25 14 |
1.5 | 50 | 32 |
