GZA stainless steel booster pump, circulation centrifugal pumps

产品介绍销售记录

Products Description:

Model GZA type stainless steel booster pump series parameters:

Capacity: 6-132m3 / h

Head: 13-57meters

attribute: horizontal multi-stage

Motor protection grade: IP55/IP54
Power: 1.1KW to 22KW
Working voltage: 220V or 380V
Liquid Temperature: -15 ℃ to + 80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
The maximum working pressure: 8 bar

The pump can be used at full head without overloading motor
Material: pump casing, back cover, impeller and the pump shaft are made of 304 stainless steel

Application:

1. transporting clean water and light corrosive liquid, centrifugal water circulation .

2. apply on industrial applications, domestic booster, washing pool, and irrigation etc.

3. water supply systems

4. pressure boiler feeding

5. pure water treating systems

6. pharmaceutical & food stuff

7. refining chemical industries

8. washing and sprinkling

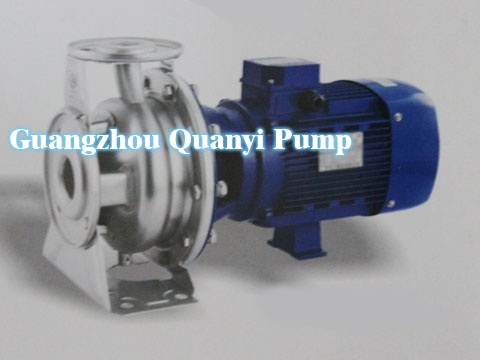

Product Picture:

Product Performance Date:

GZA stainless steel booster pump, circulation centrifugal pumps
Model	Power (kw)	Input Caliber (mm)	Output Caliber (mm)	Capacity	L/min	0	100	150	200	300	333	360	400	450	500	600	700	800	1000	1200
Model	Power (kw)	Input Caliber (mm)	Output Caliber (mm)	Capacity	m³/h	0	6.0	9.0	12	18	20	22	24	27	30	36	42	48	60	72
50-32-125/1.1	1.1	50	32	Head	Meter	24	21.5	20.5	19.5	16	13
50-32-160/1.5	1.5	50	32	Head	Meter	29.5	27	26	25	21	18
50-32-160/2.2	2.2	50	32	Head	Meter	37	33.5	32.5	32	28.5	27
50-32-200/3.0	3.0	50	32	Head	Meter	45	41	40	38	34	32
50-32-200/4.0	4.0	50	32	Head	Meter	55	51	50	49	46	45	43
65-50-125/1.5	1.5	65	50	Head	Meter	20			19	18	17	16.5	15	14	12.5	10	7
65-50-125/2.2	2.2	65	50	Head	Meter	26			23.5	22.5	22	21.5	21	20.5	19.5	16.5	13
65-50-160/3.0	3.0	65	50	Head	Meter	31			29	27.5	27	26.5	25.5	25	24	22	19
65-50-160/4.0	4.0	65	50	Head	Meter	39			35.5	34.5	34	33.5	32.5	32	31	29	26
65-50-200/5.5	5.5	65	50	Head	Meter	47			43	42.5	42	41.5	41	40.5	39	37	33
65-50-200/7.5	7.5	65	50	Head	Meter	57			53	52.5	52	51	50	49	48	46.5	44.5
80-65-125/3.0	3.0	80	65	Head	Meter	22.5							20	19.5	18.5	17.5	16	13	9
80-65-125/4.0	4.0	80	65	Head	Meter	25.5							23	22.5	22	21.5	20.5	20	17	13.5
80-65-160/5.5	5.5	80	65	Head	Meter	33							29.5	29	28.5	28	27	26	24	20
80-65-160/7.5	7.5	80	65	Head	Meter	39							36	35	34.5	34	33.5	32.5	29	24
80-50-200/9.2	9.2	80	50	Head	Meter	53									47	46.5	45	43.5	39	32
80-50-200/11	11	80	50	Head	Meter	57.5									52	51	50.5	50	47	4

GZA stainless steel booster pump, circulation centrifugal pumps
Model	Power (kw)	Input Caliber (mm)	Output Caliber (mm)	Capacity	L/min	600	650	700	800	1000	1200	1500	1800	1900	2000	2100	2200
Model	Power (kw)	Input Caliber (mm)	Output Caliber (mm)	Capacity	m³/h	36	39	42	48	60	72	90	108	114	120	126	132
100-80-125/4.0	4.0	100	80	Head	Meter	18	17.5	17	16	14	11.5	8	4.5
100-80-125/5.5	5.5	100	80	Head	Meter	22.5	22	21.5	20.5	18.5	16	12.5	8.5	7
100-80-125/7.5	7.5	100	80	Head	Meter	27.5	27	26.5	26	24	21.5	18	14	12	10.5
100-80-160/9.2	9.2	100	80	Head	Meter			31	30	28	26	23	18	16	14.5	13
100-80-160/11	11	100	80	Head	Meter			36	35	33	31	28	23	21	19.5	18	16.5
100-65-200/15	15	100	65	Head	Meter			44	43	41	39	36	32	30	28	26	23
100-65-200/18.5	18.5	100	65	Head	Meter			51	50	49	48	45	41	39	37	35	33
100-65-200/22	22	100	65	Head	Meter			57	56	55	54	51	47	45.5	44	42	40
