Products Description:
Model BB type stainless steel pump series parameters:
Capacity: 6-42 m3 / h
Head: 3.5-24 meters
Motor protection grade: IP55/IP54
Power: 0.55 KW to 3 KW
Working voltage: 220V or 380V
Liquid Temperature: -15 ℃ to + 100 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
The maximum working pressure: 8 bar
The pump can be used at full head without overloading motor
Material: pump casing, back cover, impeller and the pump shaft are made of 304 stainless steel
Application:
1. transporting clean water and light corrosive liquid, glycol solution and other liquid which must be allowed by dealer.
2. apply on industrial applications, domestic , washing, pool, and irrigation etc.

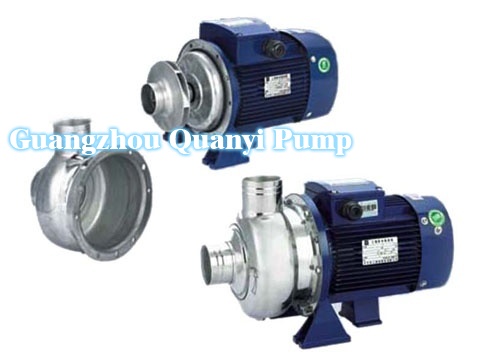

Product Picture:
Product Performance Date:
| BB stainless steel parameter | ||||||||||||
| Model | Power |
Input Caliber (mm |
Output Caliber (mm) |
Capacity | L/min | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
| m³/h | 6 | 12 | 18 | 24 | 30 | 36 | 42 | |||||
| BB250-055 | 550W | 40 | 40 | Head | meter | 10.5 | 9 | 7 | 3 | |||
| BB250-075 | 750W | 40 | 40 | Head | meter | 14.5 | 13 | 10 | 6 | |||
| BB300-110 | 1100W | 50 | 50 | Head | meter | 18.5 | 16.5 | 13.5 | 9.5 | |||
| BB300-150 | 1500W | 50 | 50 | Head | meter | 22.5 | 20.5 | 17.5 | 13.5 | |||
| BB500-150 | 1500W | 50 | 50 | Head | meter | - | 16 | 15 | 13.5 | 11.5 | 9.5 | 6 |
| BB500-220 | 2200W | 50 | 50 | Head | meter | - | 21.5 | 20 | 18.5 | 16.5 | 14.5 | 11.5 |
| BB500-300 | 3000W | 50 | 50 | Head | meter | - | 24 | 22.5 | 21 | 19 | 17 | 14 |
