Products Description:
Model BK type stainless steel pump series parameters:
Capacity: 1.2-66 m3 / h
Head: 7.5-17.5 meters
Motor protection grade: IP55/IP54
Power: 0.37 KW to 3 KW
Working voltage: 220V or 380V
Max solid diameter: 14mm
Liquid Temperature: -15 ℃ to + 80 ℃
Environment Temperature: -15 ℃ to + 40 ℃
The motor speed: 2900 r/min
The maximum working pressure: 8 bar
The pump can be used at full head without overloading motor, and can be connected with threaded tube or hose
Material: pump casing, back cover, impeller and the pump shaft are made of 304 or 316 stainless steel
Application:
1. transporting clean water and light corrosive liquid, sewage containing impurities
2. suitable for circulation cleaning system of various production lines.
3. irrigation,mud water, sewage, river water
4. Cooking oil, peanut oil, dross particles

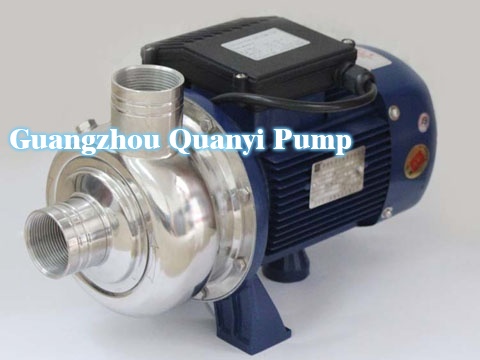

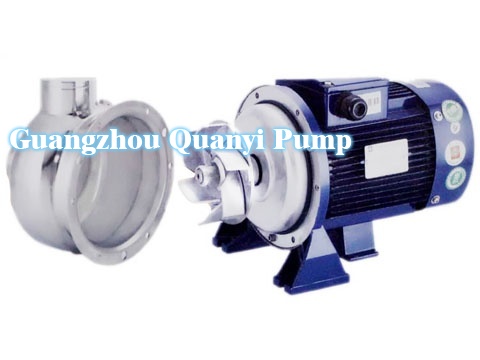

Product Picture:
Product Performance Date:
| BK stainless steel pump(220V or 380V) | ||||||||||||||||||
| Model |
Power (kw) |
Input Caliber (mm) |
Output Caliber (mm) |
Capacity | L/min | 20 | 40 | 60 | 80 | 100 | 200 | 300 | 400 | 550 | 700 | 800 | 950 | 1100 |
| m³/h | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 12 | 18 | 24 | 33 | 42 | 48 | 57 | 66 | |||||
| BK50 | 0.37 | 32 | 25 | Head | Meter | 11.6 | 10.5 | 9.7 | 8.7 | 7.5 | ||||||||
| BK100 | 0.75 | 40 | 40 | Head | Meter | 8 | 7 | 5 | ||||||||||
| BK120 | 0.9 | 40 | 40 | Head | Meter | 11 | 10 | 9 | ||||||||||
| BK150 | 1.1 | 50 | 50 | Head | Meter | 9.5 | 8.8 | 7.8 | 6.7 | 5 | ||||||||
| BK200 | 1.5 | 50 | 50 | Head | Meter | 12.7 | 12 | 11.2 | 10 | 8.3 | 6.5 | |||||||
| BK300 | 2.2 | 65 | 50 | Head | Meter | 15 | 14 | 13.5 | 12.7 | 11.2 | 9.8 | 8.9 | 7.5 | |||||
| BK400 | 3 | 65 | 50 | Head | Meter | 17.5 | 16.8 | 16 | 15.2 | 14 | 12.5 | 11.5 | 9.7 | 7.5 | ||||
